Outdoor and Indoor Rental Display 03

Indor & Outdoor Rental Display

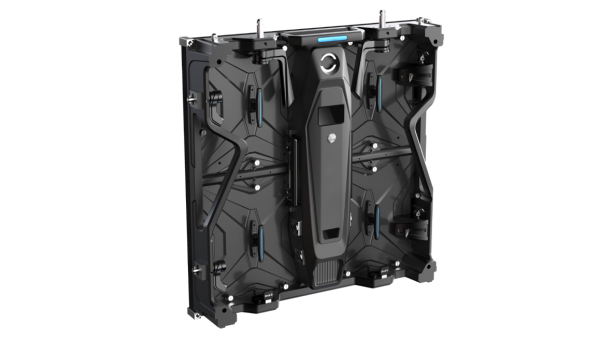

500mm x 500mm cabinet

Picture of 500mm x 500mm

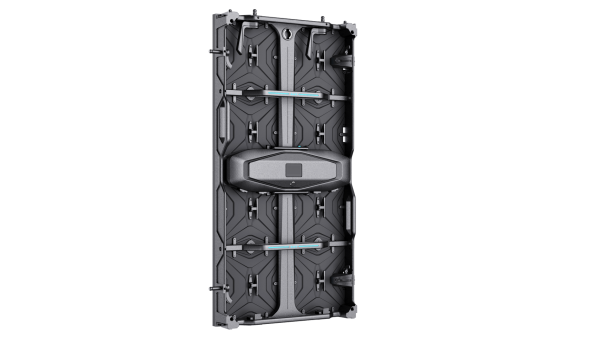

500mm x 1000mm cabinet

Picture of 500mm x 1000mm cabinet

indoor rental display, outdoor rental display

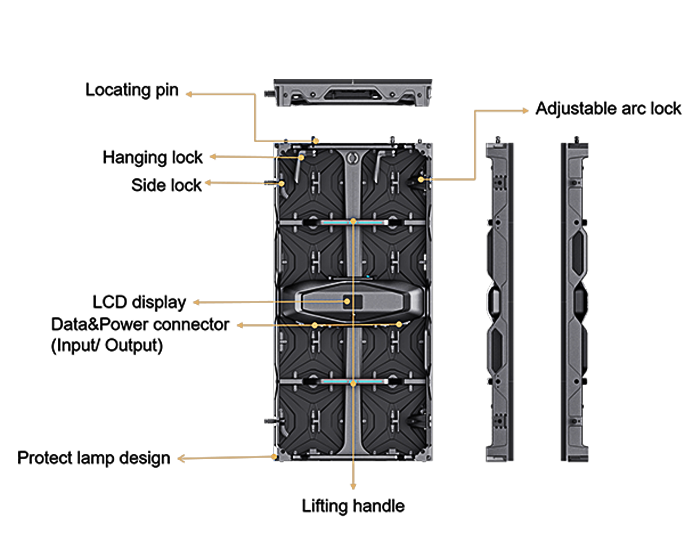

Advantages

Compact cabinet design
· Super light slim
· Module support left and right replacement
· Professional design for stage
· Modular back cover
· Newest generation curvable lock, curvable function +/- 7.5°
· Magnet module, easy and quick maintenance from front&rear

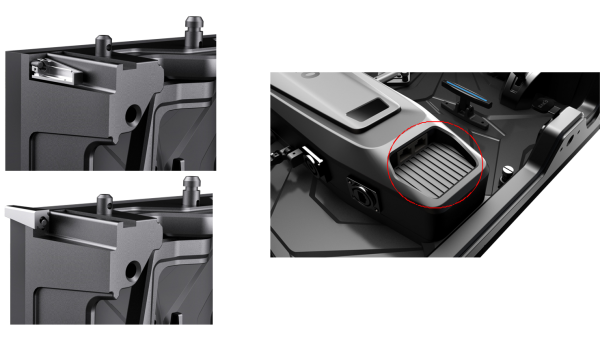

· User-friendly top lock and side lock, fast installation
· Creative hanging system support installation by one person

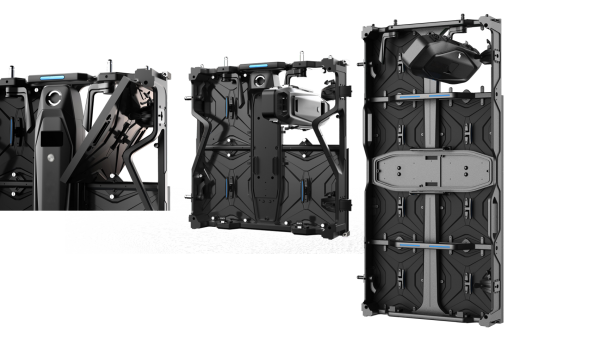

500mm x 500mm and 500mm x 1000mm cabinets makes installation fast and efficient.

fine pixel pitch display

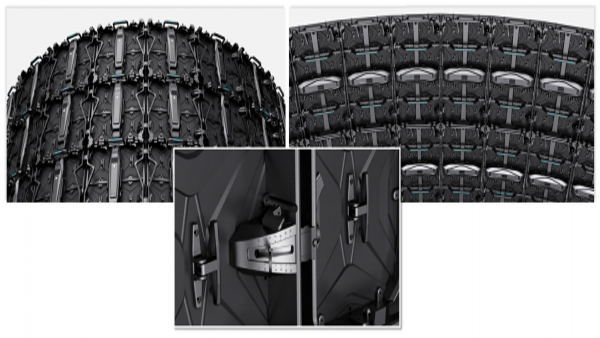

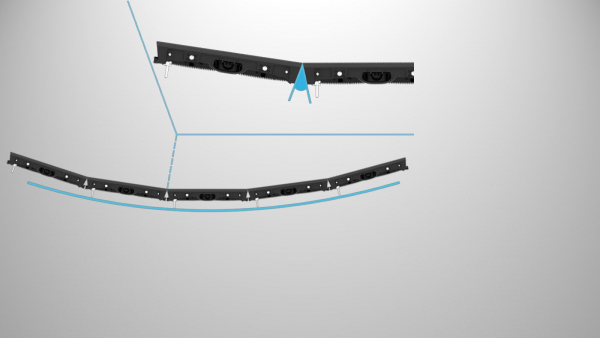

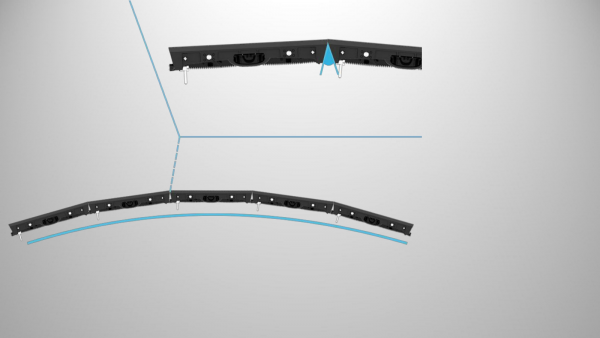

Convex/Concave curved installation Angle range: 0° ~ 15°

Front and rear maintenance, improving working efficiency

It support front and rear maintenance， suitable for quick maintenance in a different environments to improve working efficiency.

indoor rental, outdoor rental display

indoor led rental display, outdoor rental led display

Double Protection

Protect lamp design, completely reduces the pssibility of lamp failure. Dual data connection, the problem of signal interruption can be handled in time during the performance.

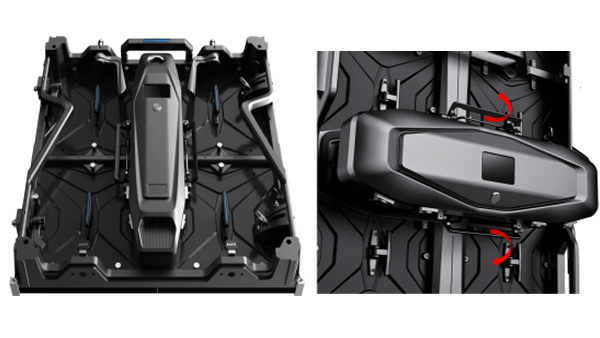

Snap-fit and tool-free, convinent, efficient

The back cover is snap-fit and tool-free, which very convinent and efficient.

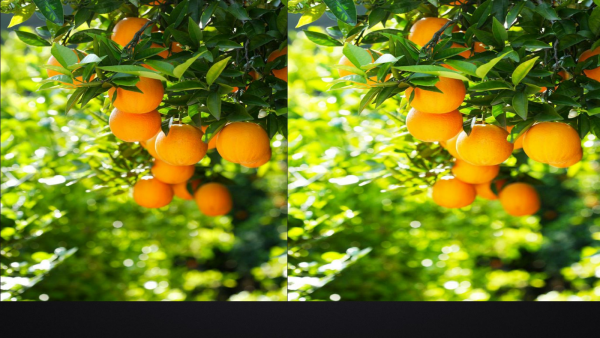

The compare picture of Color revivification

The compare picture of Brightness

rental led display, compare with comman display

rental display, led display supplier

The compare picture of Contrast.

Parameters	Indoor				Outdoor
Pixel pitch	2.6	2.97	3.91	4.81	3.91	4.81	5.95	6.25
LED type	SMD				SMD
Pixel density(pixel/㎡)	147,456	112,896	65,536	43,264	65,536	43,264	28,224	25,600
Cabinet size	500 x 500 mm \| 500 x 1000 mm
Module size	250 x 250 mm
Cabinet weight	7.5/11.5				8.5/12.5
Brightness(cd/㎡)	900 ~ 1,200				4,500 ~ 6,000
Viewing angle(H/V)	160°/140°
Refresh rate(HZ)	1920HZ/3840HZ
Max power consumption(w/㎡)	510	525	540	530	545	535	520	580
Ave power consumption(w/㎡)	218	195	210	196	216	225	203	223
Protection grade	IP40/IP21				IP65/IP54
