Outdoor Rental Led Display 01

kinds of outdoor and indoor application available

Outdoor rental LED display aims at different kinds of outdoor and indoor events. The pixel pitches are P1.9, P2.6, P2.9, P3.9 and P5.9.

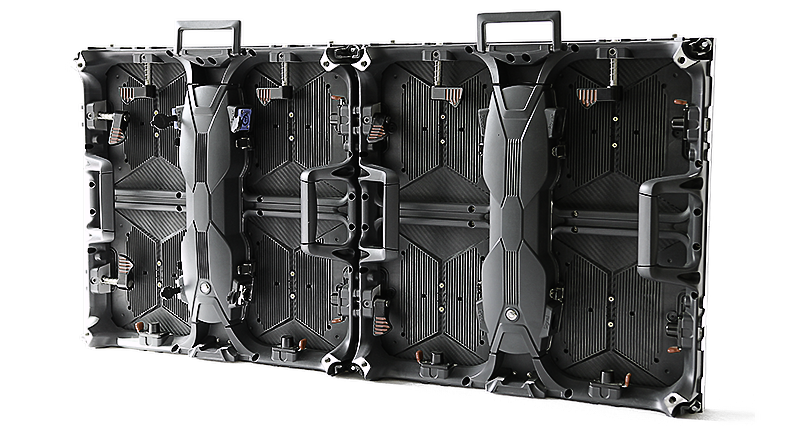

Outdoor_Rental_Display

Pixel Protection Design

In view of the needs of the activity, our LED screen has an “L” shape steel plate on each corner that can be adjusted to the proper direction, which avoids direct contact with the ground and strengthens product protectioon.

Superior Materials, Excellent Performance

We choose reliable materials, including integrated circuits, LEDs, wires, and power suppliers. So the performance in all aspects is better and lifespan is longer than similar rental screen products in the market.

outdoor rental display

Easy to Repair

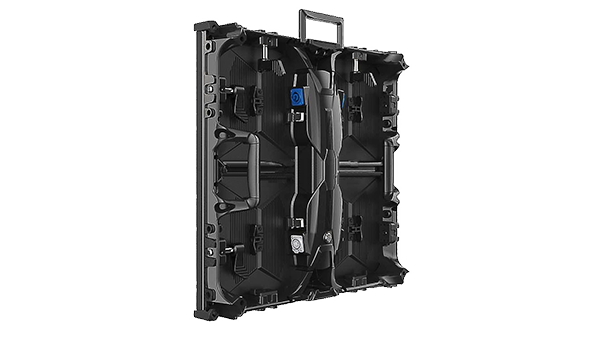

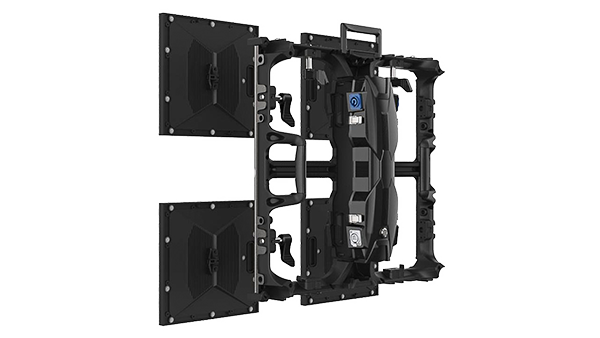

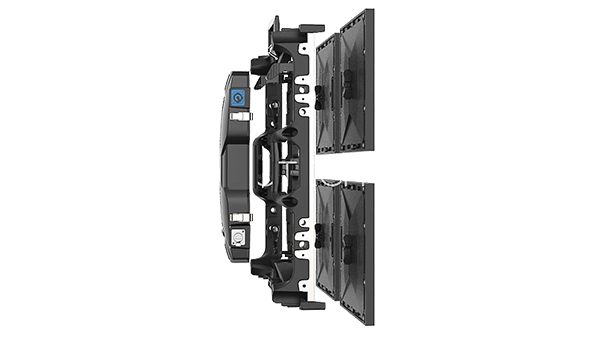

The receiving card, power supply, and hub card are build in a control box in the back of the cabinet.

If there is any problem with the LED panel, you can replace the whole control box in a few seconds. That greatly reduces the “downtime” during the event.

Light Weight

The die-casting panel is light and strong. The weight of the panel is only 7.5kg, and the thickness of the panel is only 90mm, ensuring the high quality of the LED video wall and easy operation.

Seamless Connecion

The cabinet is die-casted by high precision CNC machine, plus dual locks are armed on each side of the cabinet, which makes the installation more secure and gapless.

Multiple Installations

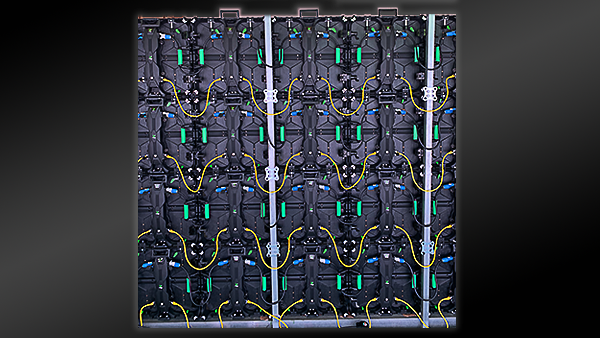

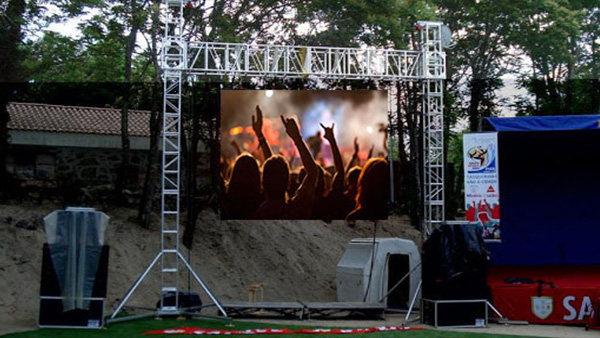

Stacking installations: Ground stacking makes your installation easier and faster during the events.

Lifting installation: The hanging bar can bang the cabinets from truss. The light weight of the cabinet will reduce the physical pressure of the frame.

outdoor rental display, led display supplier

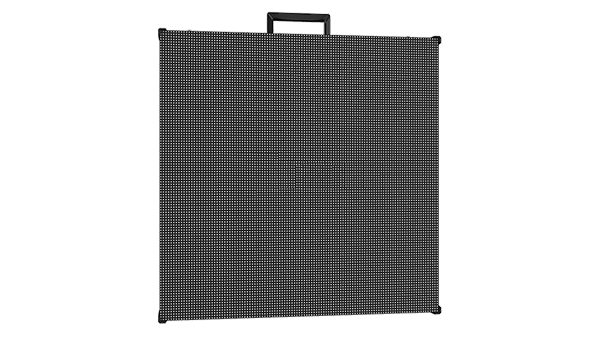

High Quality Black SMD

High contrast radio from black LED enables a clear vision on the screen in the direct sunlight.

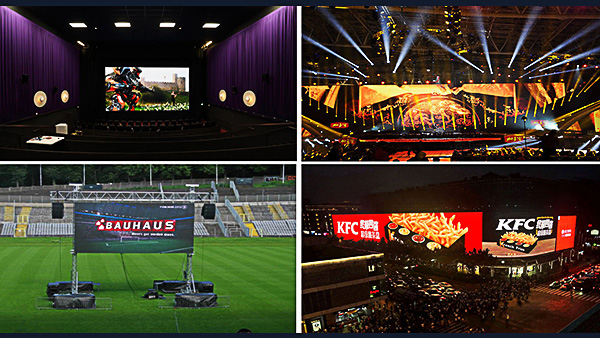

Application Fields

To fit every different scene, the giant LED screen is made up of superior quality materials with a concise and strong structure. This product is usually used in:

Cinemas, Stages, Advertisements, Sports Events.

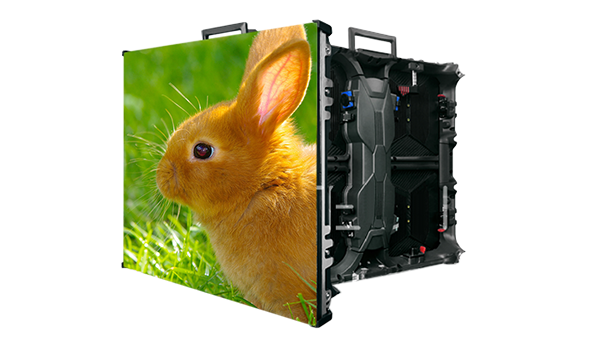

Rental Outdoor Display

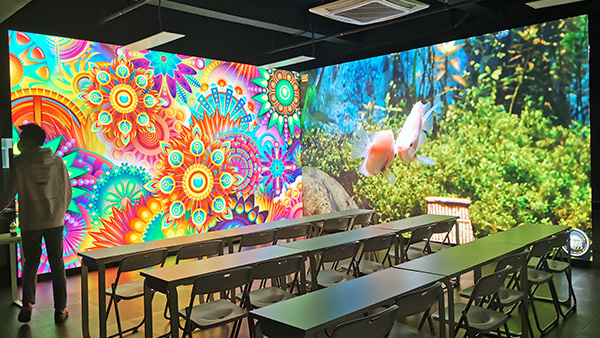

Curve Capabilities

Curve connection locks are available to support the curve from -15° ~ +15°， which allows users to chose the flexible shape of the advertising LED screen. Flat, cooncave, and convex screen create a strong visual impact.

Item	nbsp;	P1.9	P2.6	P2.9	P3.9	P4.8	P5.9
Pixel Pitch	nbsp;	1.953mm	2.604mm	2.976mm	3.906mm	4.807mm	5.952mm
Led Type	nbsp;	SMD1212	SMD1415	SMD1415	SMD1921	SMD1921	SMD2727
Module Resolution	nbsp;	128dots x 128dots	96dots x 96dots	64dots x 84dots	64dots x 64dots	52dots x 52dots	42dots x 42dots
Driving Mode	nbsp;	1/32 Scan	1/16 scan or 1/32 scan	1/14 scan or 1/21 scan	1/16 scan or 1/8 scan	1/13 scan or 1/7 scan	1/7 scan
Module Pixels	nbsp;	16,384dots	9,216dots	7,056dots	4,096dots	2,704dots	1,764dots
Module Size	nbsp;	250mm x 250mm	250mm x 250mm	250mm x 250mm	250mm x 250mm	250mm x 250mm	250mm x 250mm
Cabinet Size	nbsp;	500mm x 500mm	500mm x 500mm	500mm x 500mm	500mm x 500mm	500mm x 500mm	500mm x 500mm
Cabinet Resolution	nbsp;	256dots x 256dots	192dots x 192dots	168dots x 168dots	128dots x 128dots	104dots x 104dots	84dots x 84dots
Pixel Density	nbsp;	262,144dots/sqm	147,456dots/sqm	112,896dots/sqm	65,536dots/sqm	43,264dots/sqm	28,224dots/sqm
Minimum Viewing Distance	nbsp;	≥1.9m	≥2.6m	≥2.9m	≥3.9m	≥4.8m	≥5.9m
Brightness	nbsp;	4,000nits(Black)	4,000nits(Black)/4,500nits(White)	4,000nits(Black)/4,500nits(White)	4,000nits(Black)/4,500nits ~ 6000nits(White)	4,000nits(Black)/4,500nits ~ 6000nits(White)	4,000nits(Black)/4,500nits ~ 6000nits(White)
IP Grade	nbsp;	IP65	IP65	IP65	IP65	IP65	IP65
Refresh Rate	nbsp;	1,920HZ ~ 3,840HZ	1,920HZ ~ 3,840HZ	1,920HZ ~ 3,840HZ	1,920HZ ~ 3,840HZ	1,920HZ ~ 3,840HZ	1,920HZ ~ 3,840HZ
Gray Scale	nbsp;	13bits ~ 24bits	13bits ~ 24bits	13bits ~ 24bits	13bits ~ 24bits	13bits ~ 24bits	13bits ~ 24bits
Viewing Angle	nbsp;	H:160°/V:160°	H:160°/V:160°	H:160°/V:160°	H:160°/V:160°	H:160°/V:160°	H:160°/V:160°
Maxmum Power Consumption	nbsp;	800W/sqm	800W/sqm	800W/sqm	800W/sqm	800W/sqm	800W/sqm
Average Power Consumption	nbsp;	230W/sqm	230W/sqm	230W/sqm	230W/sqm	230W/sqm	230W/sqm
Input Voltage	nbsp;	AC110V ~ AC220V @50/60HZ	AC110V ~ AC220V @50/60HZ	AC110V ~ AC220V @50/60HZ	AC110V ~ AC220V @50/60HZ	AC110V ~ AC220V @50/60HZ	AC110V ~ AC220V @50/60HZ
Operating Temperature	nbsp;	-20℃ ~ 65℃	-20℃ ~ 65℃	-20℃ ~ 65℃	-20℃ ~ 65℃	-20℃ ~ 65℃	-20℃ ~ 65℃
Operating Humidity	nbsp;	10% ~ 90%	10% ~ 90%	10% ~ 90%	10% ~ 90%	10% ~ 90%	10% ~ 90%
Cabinet Material	nbsp;	Die-Casting Aluminum	Die-Casting Aluminum	Die-Casting Aluminum	Die-Casting Aluminum	Die-Casting Aluminum	Die-Casting Aluminum
Cabinet Weight	nbsp;	7.5kg/panel	7.5kg/panel	7.5kg/panel	7.5kg/panel	7.5kg/panel	7.5kg/panel
Operating System	nbsp;	Windows(win7,Win8,Win10,etc)	Windows(win7,Win8,Win10,etc)	Windows(win7,Win8,Win10,etc)	Windows(win7,Win8,Win10,etc)	Windows(win7,Win8,Win10,etc)	Windows(win7,Win8,Win10,etc)
Signal Source Compatibility	nbsp;	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc
