Transparent Led Display

High Transparency

Transparency of our T1 series transparent LED display is up to 52% or even 82%, which offers a range of creative applications for the live event and installation market.

Outdoor transparent LED screen is available, which has IP65 level of waterproof and dustproof. The pixel pitch is P3.9.

High Brightness

Its brightness of our transparent LED display products is up to 5000nits or even higher. So the display content will still look very clear even if in the sunlight. Using its excellent video performance to capture the audience’s attention and bring them unforgettable visual experience.

Ecnmical and Eco-friendly

The power consumption is 1/3 lower than normal screen.

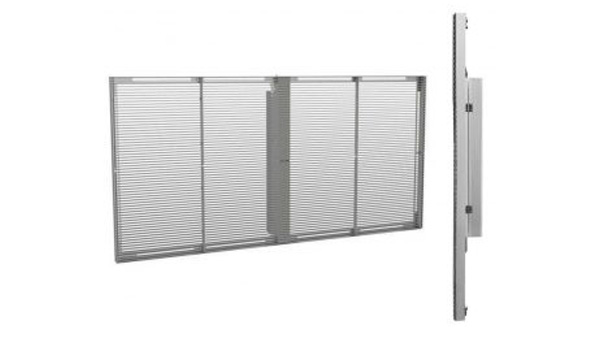

Light and Slim

80mm cabinet thickness and 4.3kgs weight make T1 lighter and thinner than most of other transparent LED displays in the market.

Standard & Customized Casbinet Design

Standard cabinet design 1,000mm x 500mm brings easier installation. Meanwhile, the customized design is available.

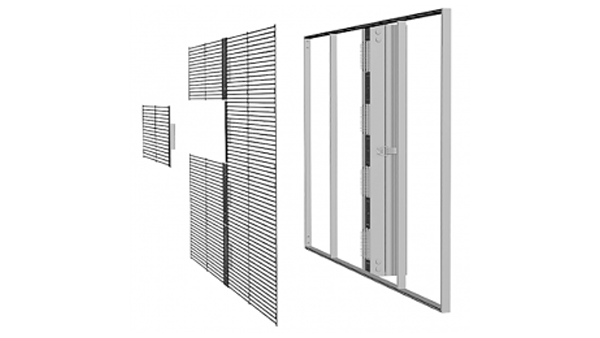

Modular Design

The modular power box and PCB make repair easy and replacement of spare parts cost-effective. The module PCB helps to control the flatness of the screen campared with the slide emitting LED PCB strip.

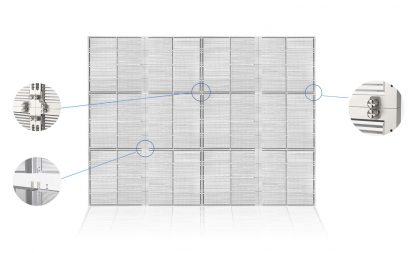

Fast and Easy Installation

Our transparent LED display comes with a wide range of accessories, connection locks, transport flight cases and hanging options. The fast lock assembly contributes to efficient handing, transportation and ease of installation.

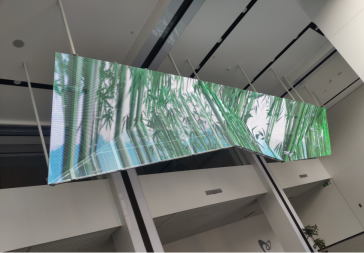

Flexibility

Owning to high flexibility of cabinet and high density of pixel pitch, units may be multi-angle folded to satisfy creative HD design.

Application Fields

To be adapted for every different scene, our T1 products are made up of superior quality materials with the concise and strong structure. T1 products are usually used in:

Museums
Shopping malls
Exhibition events

Item	nbsp;	P1.9	P2.8	P3.9	P7.8	P10.4	P3.9(Outdoor)
Pixel Pitch	nbsp;	1.953mm(w)x3.906mm(H)	2.841mm(w)x5.681mm(H)	3.91(w)x7.81mm(H)	7.81mm(w)x7.81mm(H)	10.4mm(w)x10.4mm(H)	3.91mm(w)x7.81mm(H)
Led Type	nbsp;	SMD1525	SMD1921	SMD1921	SMD1921	SMD1921	SMD1921
Module Resolution	nbsp;	256dots x 32dots	176dots x 22dots	128dots x 16dots	128dots x 32dots	96dots x 24dots	128dots x 16dots
Driving Mode	nbsp;	1/14 Scan	1/11 Scan	1/8	1/4 Scan	1/3 Scan or static	1/8 Scan
Module Pixels	nbsp;	8,192 dots	3,872 dots	2,048 dots	4,096 dots	2,304 dots	2,048 dots
Module Size	nbsp;	500mm x 125mm	500mm x 125mm	500mm x 125mm	1,000mm x 250mm	1,000mm x 250mm	500mm x 125mm
Cabinet Size	nbsp;	1,000mm x 500mm	1,000mm x 500mm	1,000mm x 500mm	1,000mm x 500mm	1,000mm x 500mm	1,000mm x 500mm
Cabinet Resolution	nbsp;	512dots x 128dots	352dots x 88dots	256dots x 64dots	128dots x 64dots	96dots x 48dots	256dots x 64dots
Pixel Density	nbsp;	131,072 dots/sqm	61,952 dots/sqm	32,768 dots/sqm	16,384 dots/sqm	9,216 dots/sqm	32,768 dots/sqm
Minimum Viewing Distance	nbsp;	≥1.9 m	≥2.8 m	≥3.9 m	≥7.8 m	≥10.4 m	≥3.9 m
Brightness	nbsp;	≥5,000nits	≥5,000nits	≥5,000nits	4,500nits ~ 5,000nits	4,500nits ~ 5,000nits or 6,000nits	≥5,000nits
IP Grade	nbsp;	IP43	IP43	IP43	IP43	IP43	IP43
Refresh Rate	nbsp;	1,920 ~ 3,840HZ	1,920 ~ 3,840HZ	1,920 ~ 3,840HZ	1,920 ~ 3,840HZ	1,920 ~ 3,840HZ	1,920 ~ 3,840HZ
Gray Scale	nbsp;	13bits ~ 24bits	13bits ~ 24bits	13bits ~ 24bits	13bits ~ 24bits	13bits ~ 24bits	13bits ~ 24bits
Viewing Angle	nbsp;	H:160°/ V:160°	H:160°/ V:160°	H:160°/ V:160°	H:160°/ V:160°	H:160°/ V:160°	H:160°/ V:160°
Maxmum Power Consumption	nbsp;	800W/sqm	800W/sqm	800W/sqm	800W/sqm	800W/sqm	800W/sqm
Average Power Consumption	nbsp;	230W/sqm	230W/sqm	230W/sqm	230W/sqm	230W/sqm	230W/sqm
Input Voltage	nbsp;	AC110V ~ AC220V @50/60HZ	AC110V ~ AC220V @50/60HZ	AC110V ~ AC220V @50/60HZ	AC110V ~ AC220V @50/60HZ	AC110V ~ AC220V @50/60HZ	AC110V ~ AC220V @50/60HZ
Operating Temperature	nbsp;	-20℃ ~ 65℃	-20℃ ~ 65℃	-20℃ ~ 65℃	-20℃ ~ 65℃	-20℃ ~ 65℃	-20℃ ~ 65℃
Operating Humidity	nbsp;	10% ~ 90%	10% ~ 90%	10% ~ 90%	10% ~ 90%	10% ~ 90%	10% ~ 90%
Cabinet Material	nbsp;	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
Cabinet Weight	nbsp;	4.3 kg/panel	4.3 kg/panel	4.3 kg/panel	4.3 kg/panel	4.3 kg/panel	4.3 kg/panel
Operating System	nbsp;	Windows(win7,Win8,Win10,etc)	Windows(win7,Win8,Win10,etc)	Windows(win7,Win8,Win10,etc)	Windows(win7,Win8,Win10,etc)	Windows(win7,Win8,Win10,etc)	Windows(win7,Win8,Win10,etc)
Signal Source Compatibility	nbsp;	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc
