Taxi Led display p4mm

Box Color Options:

Regular Color:

Traffic Red(RAL3020)

Traffic Grey A(RAL7042)

Traffic Yellow(RAL1023)

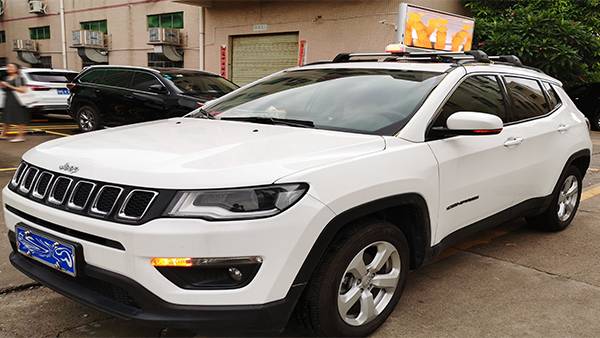

Taxi top sign

Taxi top sign is for outdoor solution with slim and beautiful aluminum and pc case.Base on the car power system and wind resistance,it will not damage the car or block the wind in heavy condition.With high brightness but low power comsumption,it will be useful for bring more ads .

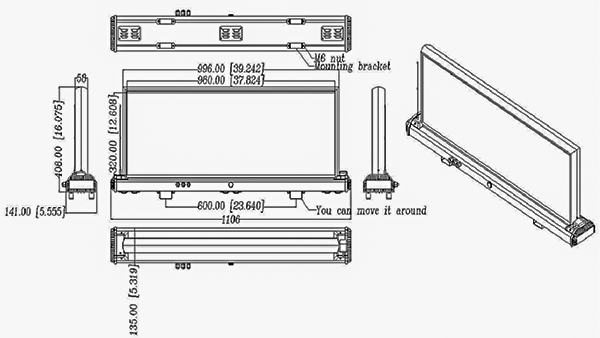

Structure of taxi led display

The structure is easy to maintain and fast to check any problem.It will be with 2-4 years warrenty according to the car request.

Easy and convinent using web control

Web control and could manage in anytime and any location through web browser.No need for download software

Be safety to use, short circuit be protected.

Patent design with high level powersupply,beyond voltage,current load,short circuit will be protected. Also with delay swith function.Work in -40°C~+70°C environment.

Details design for your requirements

With easy installtion bracket
Fast maintenance structure
Custimize with different pixel pitch

Pixel Pitch	nbsp;	2.5mm	Pro2.5mm	3.3mm	4mm	5mm
LED Configuration	nbsp;	SMD1921	SMD1921	SMD1921	SMD1921	SMD2727
Module Size/mm	nbsp;	320×160	320×160	320×160	320×160	320×160
Module Resolution	nbsp;	128×64 dots	128×64 dots	96×64 dots	80×40 dots	64×32 dots
Display Size	nbsp;	960×320	960×320	960×320	960×320	960×320
Cabinet Weight	nbsp;	18Kg	18Kg	18Kg	18Kg	18Kg
IP Rating	nbsp;	IP65	IP65	IP65	IP65	IP65
Scan	nbsp;	1/32S	1/32S	1/24S	1/10S	1/8S
Brightness /sqm	nbsp;	4000 nits	4700 nits	4000 nits	5000 nits	5000 nits
View Angle/°	nbsp;	160°/140°(H/V)	160°/140°(H/V)	160°/140°(H/V)	160°/140°(H/V)	160°/140°(H/V)
Gray Scale/bit	nbsp;	14bit	14bit	14bit	14bit	14bit
Max. Power Consumption/PC	nbsp;	360W	360W	360W	360W	360W
Ave. Power Consumption/W	nbsp;	225W	225W	225W	225W	225W
Refresh Frequency/HZ	nbsp;	≥1920 Hz	≥1920 Hz	≥1920 Hz	≥1920 Hz	≥1920 Hz
Operating Power	nbsp;	AC 96~240V 50/60HZ	AC 96~240V 50/60HZ	AC 96~240V 50/60HZ	AC 96~240V 50/60HZ	AC 96~240V 50/60HZ
Operating Temperature	nbsp;	-40℃ ~ +60℃	-40℃ ~ +60℃	-40℃ ~ +60℃	-40℃ ~ +60℃	-40℃ ~ +60℃
Operating Humidity	nbsp;	10 ~ 90% RH	10 ~ 90% RH	10 ~ 90% RH	10 ~ 90% RH	10 ~ 90% RH
Operating Life	nbsp;	100,000Hours	100,000Hours	100,000Hours	100,000Hours	100,000Hours
