Rolling Up Interactive LED Display Screen

Scroll Up Led Display Screen

COB-Led Display

Innovative LED Display Products

LED Rolling Up Display is a new generation of innovative LED Display products, in addition to the traditional display, all the features and technical features, its excellent structure design makes it roll up like paper, it has the appearance of ultra-thin and ultra-light weight, is the ideal alternative to traditional display, suitable for all traditional display applications.

GOB Technology

Surface safty with IK10 anti-collision grade and IP65 waterproof grade, also with non-slip mat and anti-reflection. And high visual performance (with high contrast LED for uniform visual performance in black) are considered.

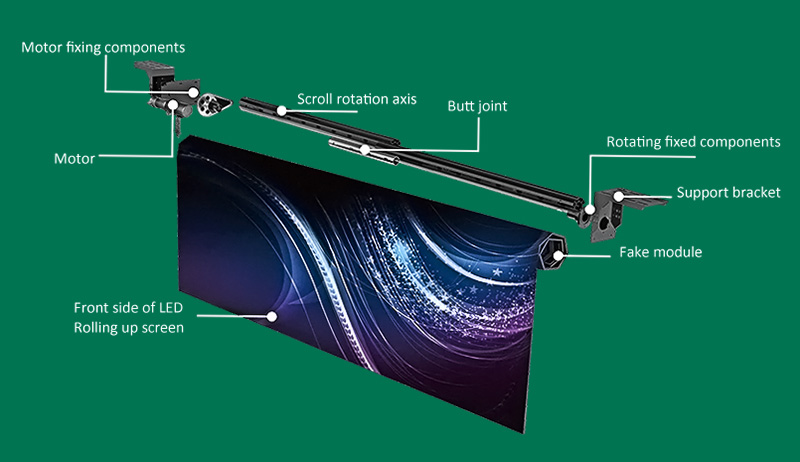

4K COB Led display

cob display 4K

Light weight and super thin

15 KG/Sqm weight and 10 mm thickness make easy to install and carry, wich can simplify the design of supporting structure to design better artistic effect.

6063 Aluminum module case

Aluminum case adopts strething process, which make sure the accurate size and have the best heat dissipation from the LED.

Fast installation and easy maintenance

Its simple structure allows for easy installation and quick maintenance.

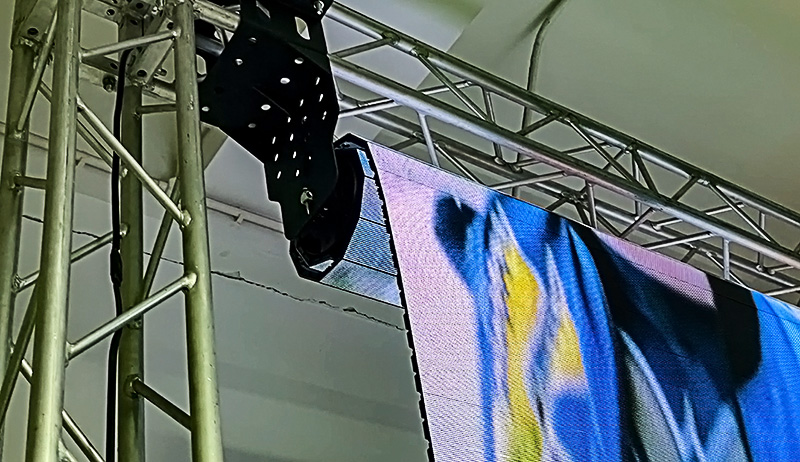

Installation

1. Fixing hooks to truss;
2. Spread the rolling display unit;
3. Secure the hanging bar above each roll of screen;
4. Put the rolling display on the hook;
5. Splice the screen left and right using the quick locks on the hanging bar.

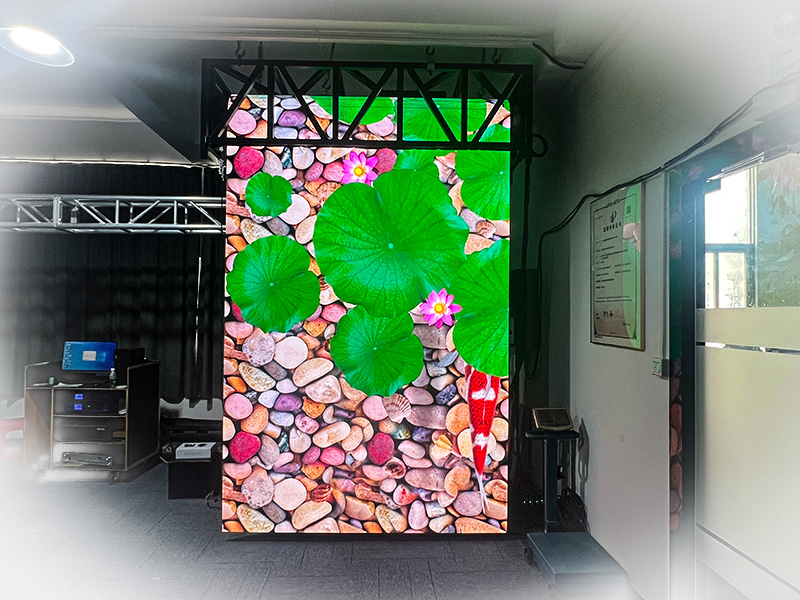

Installation

Haning on the wall is the perfectt solution to replace traditional wall video. Without damage the wall, without additional structure, without complex wiring connections, the entire LED Rolling display can be combined into a beautiful video wall using only hanging bars and hooks.

Low voltage input

Low voltage 24V/DC input for every unit screen.

cled cob 4k HD led display

Application Fields

Meeting Room
TV Studio
Exhibition Center
Could be rolled like a mat
Cinema
Shop, Store
School

Item	nbsp;	P0.78	P0.9	P1.25	P1.56	P1.9	P2.6	P3.91
Pixel Pitch	nbsp;	0.78mm	0.9mm	1.25mm	1.56mm	1.9mm	2.6mm	3.91mm
Brightness	nbsp;	400cd	400cd	400cd	600cd	600cd	600cd	600cd
View Distance	nbsp;	0.78m	0.95m	1.25m	1.56m	1.95m	2.6m	3.91m
LED Lamp	nbsp;	SMD0606	SMD0606	SMD1010	SMD1010	SMD1010	SMD1415	SMD2121
Pixel Density	nbsp;	1,638,400	1,048,576	640,000	409,600	262,144	147,456	65,536
Scan Mode	nbsp;	1/80	1/64	1/50	1/40	1/32	1/24	1/16
Module Pixels	nbsp;	640 x 80	512 x 64	400 x 50	320 x 40	256 x 32	192 x 24	128 x 16
Module size	nbsp;	500 x 62.5 x 17	500 x 62.5 x 17	500 x 62.5 x 17	500 x 62.5 x 17	500 x 62.5 x 17	500 x 62.5 x 17	500 x 62.5 x 17
Refresh Rate	nbsp;	3840 HZ	3840 HZ	3840 HZ	3840 HZ	3840 HZ	3840 HZ	3840 HZ
Viewing Angle	nbsp;	140° \| 140°	140° \| 140°	140° \| 140°	140° \| 140°	140° \| 140°	140° \| 140°	140° \| 140°
Contrast	nbsp;	1500:1	1500:1	1500:1	1500:1	1500:1	1500:1	1500:1
Working Voltage	nbsp;	AC 100~240V	AC 100~240V	AC 100~240V	AC 100~240V	AC 100~240V	AC 100~240V	AC 100~240V
Weight	nbsp;	18Kg/㎡	18Kg/㎡	18Kg/㎡	18Kg/㎡	18Kg/㎡	18Kg/㎡	18Kg/㎡
Install Mode	nbsp;	Fixed, Rental, Hanging	Fixed, Rental, Hanging	Fixed, Rental, Hanging	Fixed, Rental, Hanging	Fixed, Rental, Hanging	Fixed, Rental, Hanging	Fixed, Rental, Hanging
Water Proof	nbsp;	IP65 \| IP41	IP65 \| IP41	IP65 \| IP41	IP65 \| IP41	IP65 \| IP41	IP65 \| IP41	IP65 \| IP41
Certification	nbsp;	CE \| FCC \| ROHS	CE \| FCC \| ROHS	CE \| FCC \| ROHS	CE \| FCC \| ROHS	CE \| FCC \| ROHS	CE \| FCC \| ROHS	CE \| FCC \| ROHS
