Fine Pitch LED Display-SP2

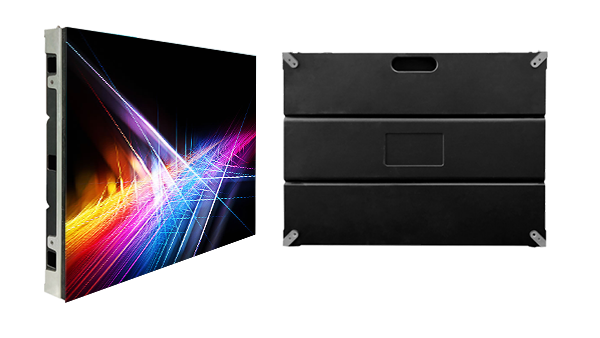

fine-pixel-pitch

High Refresh Rate and Excellent Visual Effect

The high refresh rate ensures the smoothness of every frame of the images, thus the LED display won’t appear flicking on the highspeed camera. And the images and video visual effects are amazing. Our SP2 series has an excellent visual performance because we adopt high-quality black LED.

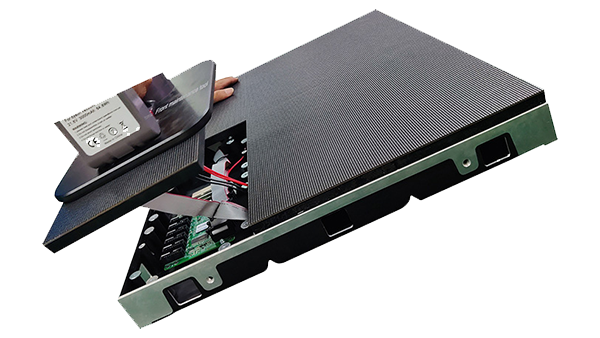

Fully Front Access Service

The cabinet, module, power supply and other components are with fully front access service, therefore super easy disassembly of the fine pitch LED screen is allowed.The cabinet can be accessed from front side for maintenance and installation.

Seamless Connection

High precision CNC fabrication and the cabinet precision within 0.05mm bring seamless assembly. Besides,signal cables and power cables are inside of the cabinets and the LED screen without external cables brings more stability.

Large Viewing Angle

The surface of the small LED screen looks very flat and neat. 160° wide horizontal and vertical viewing support maximum audience engagement in short viewing distance.

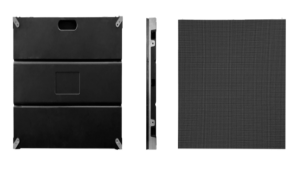

fine pixel pitch display

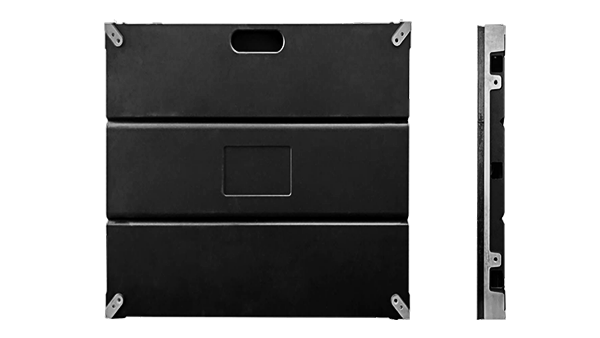

file pixel pitch display

Multiple Functions

Small pitch screen can be used for both fixed and rental indoor installation. The feedback from the clients for this item is 5 stars because of its reliable performance and high quality images.

Cost-effective

Indoor LED panel with the slim and unique design and the pixel pitches are P1.6, P1.8, P2.0 and P2.5. Meanwhile, our SP2 series LED screens were sold a lot each year. It is favourable and cost effective.

fine pixel pitch display

Light Weight, Thin Screen.

Die-casting aluminum design is used in the cabinet , so each panel weighs only 7.5 kgs, which brings much more convenience when we do the installation and transportation. More importantly, it can reduce the pressure of architecture and the risk of collapse.

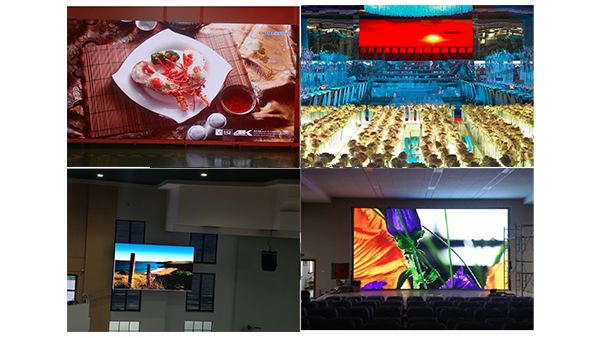

Application Fields

Meeting Room
TV studio
Exhibition Center
Shopping Mall
Airport

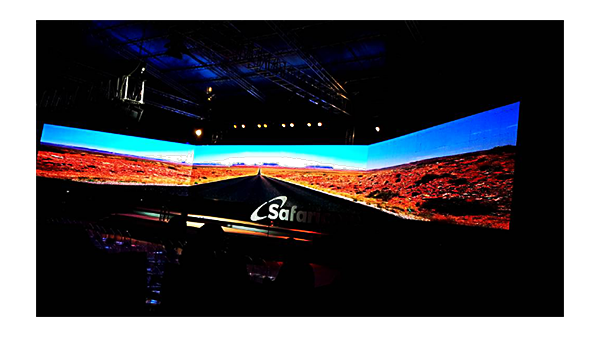

fine pixel pitch display

The color contrast ratio

The color contrast ratio is even better than 5,000:1. Armed with HDR technology and color enhancement technology, the white balance of the screen reaches a 100% sRGB and stunning visual performance. Even in high light environments the screen also looks very clear, and the visual effect looks perfect.

Item	nbsp;	P1.6	P1.8
Pixel Pitch	nbsp;	1.66mm	1.86mm
Led Type	nbsp;	SMD1010	SMD1515
Module Resolution	nbsp;	120dots x 96dots	172dots x 86dots
Driving Mode	nbsp;	1/48 Scan	1/43 Scan
Module Pixels	nbsp;	18,432 dots	14,792 dots
Module Size	nbsp;	320mm x 160mm	320mm x 160mm
Cabinet Size	nbsp;	640mm x 480mm	640mm x 480mm
Cabinet Resolution	nbsp;	384dots x 288dots	344dots x 258dots
Pixel Density	nbsp;	362,897 dots/sqm	288,906 dots/sqm
Minimum Viewing Distance	nbsp;	≥1.6 m	≥1.8 m
Brightness	nbsp;	800nits ~ 1000nits	800nits ~ 1000nits
IP Grade	nbsp;	IP43	IP43
Refresh Rate	nbsp;	1,920HZ ~ 3840HZ	1,920HZ ~ 3840HZ
Gray Scale	nbsp;	14bits ~ 24bits	14bits ~ 24bits
Viewing Angle	nbsp;	H:160°/ V:160°	H:160°/ V:160°
Maxmum Power Consumption	nbsp;	350W/sqm	350W/sqm
Average Power Consumption	nbsp;	100W/sqm	100W/sqm
Input Voltage	nbsp;	AC110V ~ AC220V @50/60HZ	AC110V ~ AC220V @50/60HZ
Operating Temperature	nbsp;	-20℃ ~ 65℃	-20℃ ~ 65℃
Operating Humidity	nbsp;	10% ~ 90%	10% ~ 90%
Cabinet Material	nbsp;	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	nbsp;	7.5 kg/panel	7.5 kg/panel
Operating System	nbsp;	Windows(win7,Win8,Win10,etc)	Windows(win7,Win8,Win10,etc)
Signal Source Compatibility	nbsp;	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc
