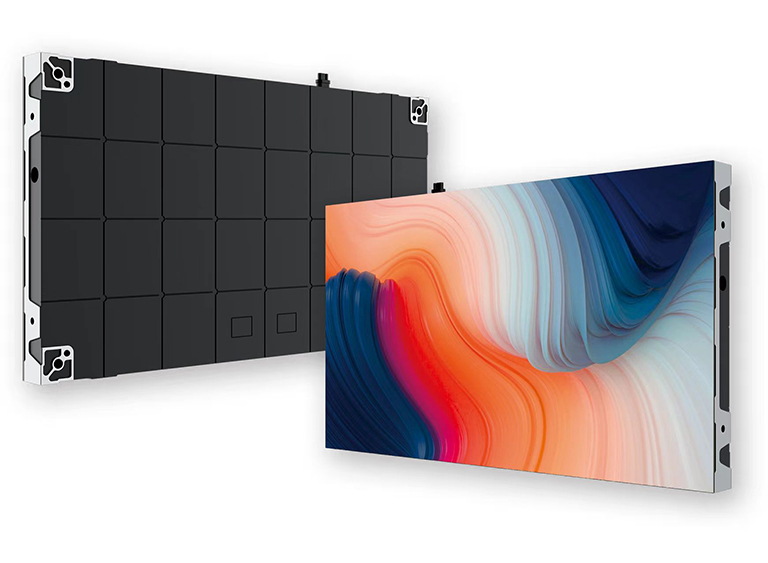

Magic Cube Series

Magic Cub Series Detail

High gray scale level

With 16 bit color processing, image transition from dark to bright is smooth, colorful and bright.

Hard connections stability

The power supply, module and Hub board are all designed with hard connections to improve product stability.

Installation fast

The left and bottom of the cabinet are equipped with spring locks, make installation fast.

Seamless splicing

The bottom of the cabinet is designed with positioning columns for quick positioning and precise seamless splicing during installation.

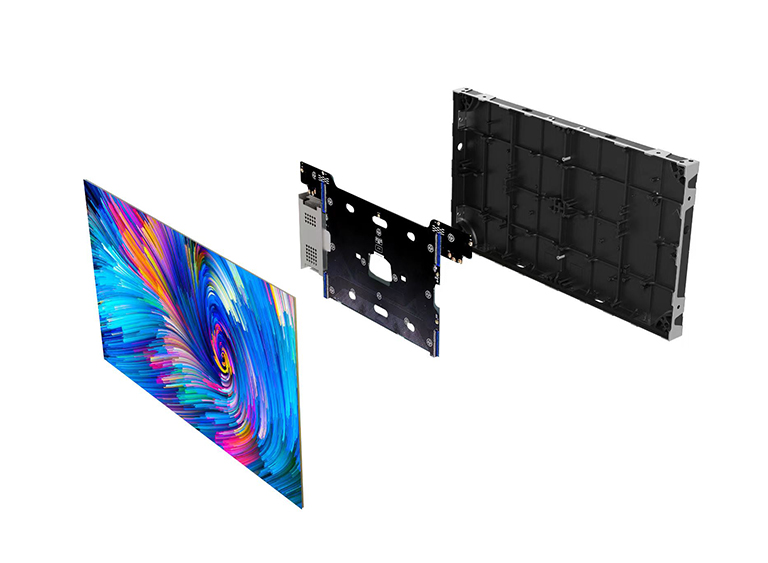

Easy maintenance

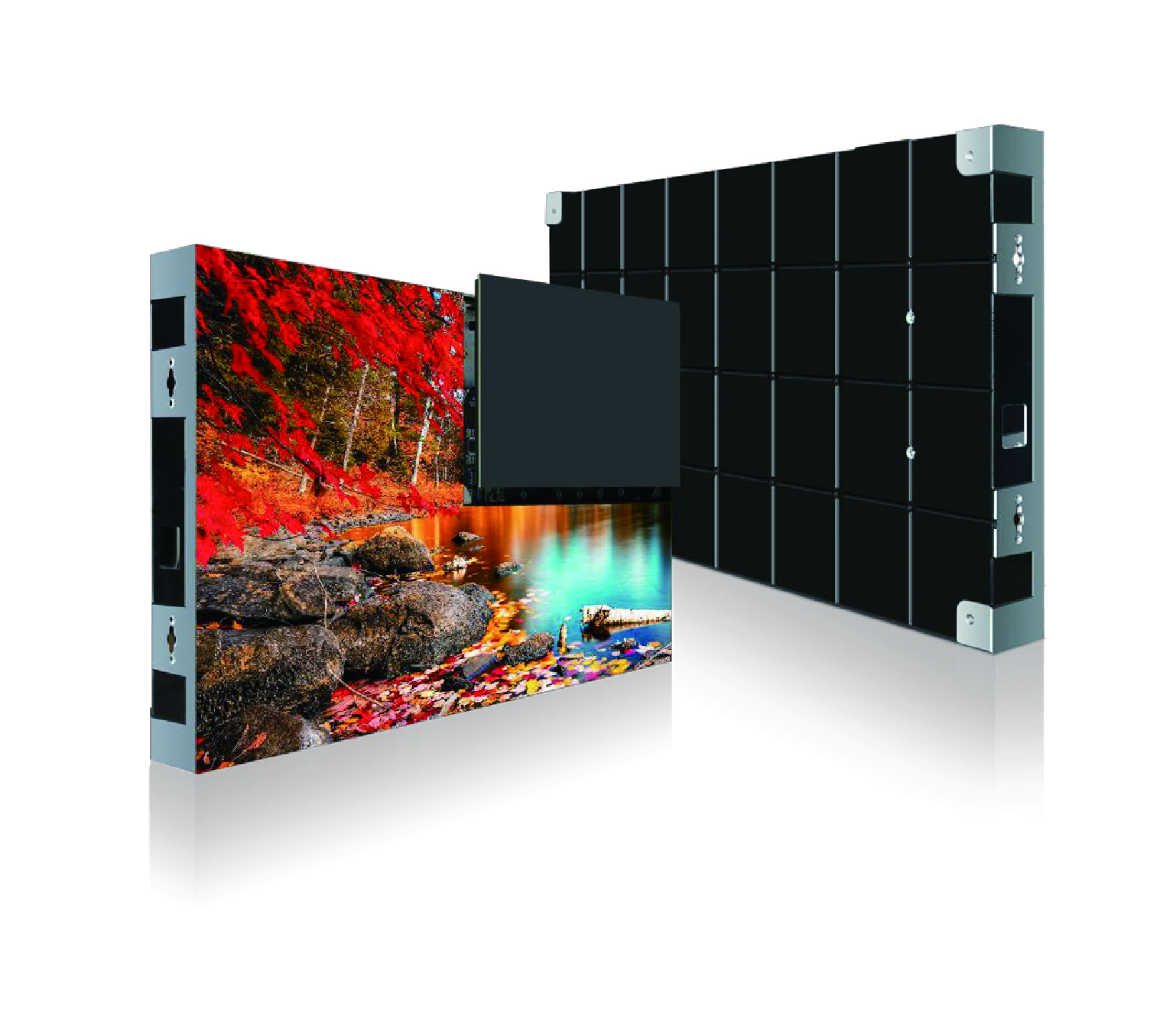

Full front maintenance, featuring hot-swappable modules, and overall
rigid connection.

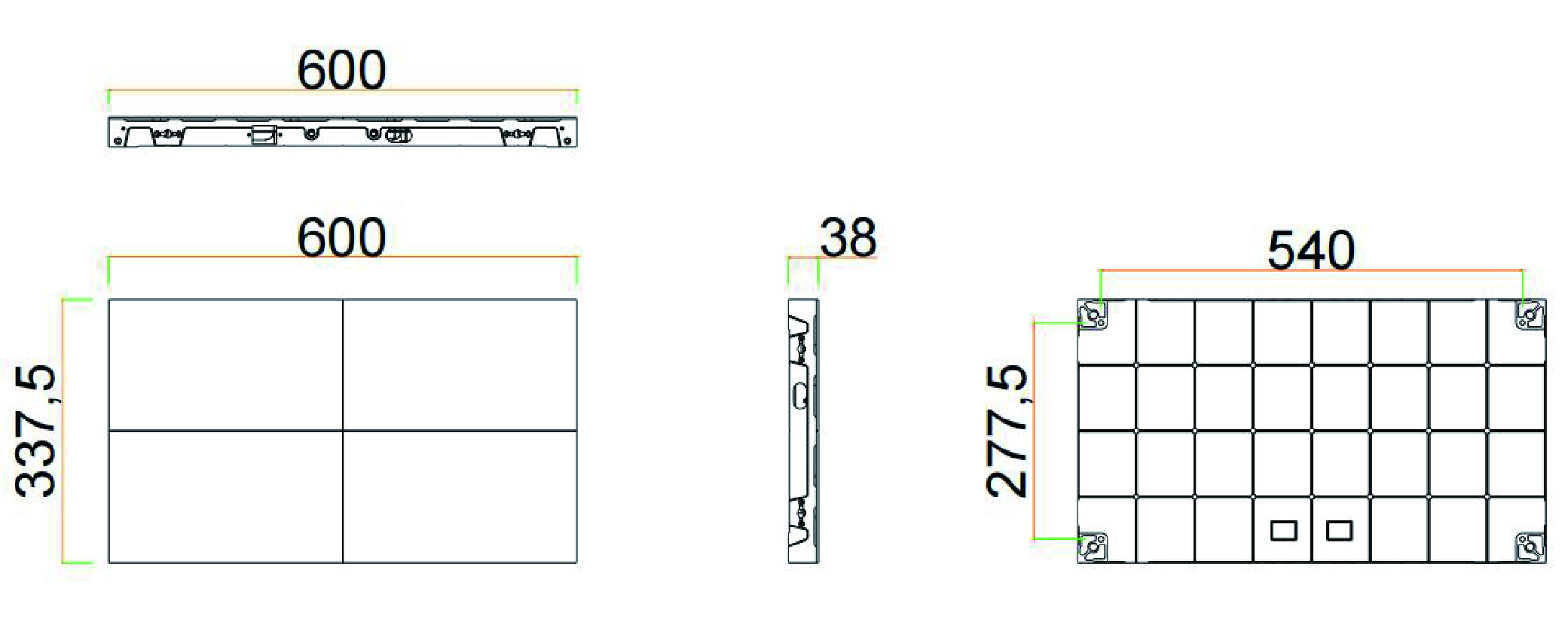

Product Drawing

Packing

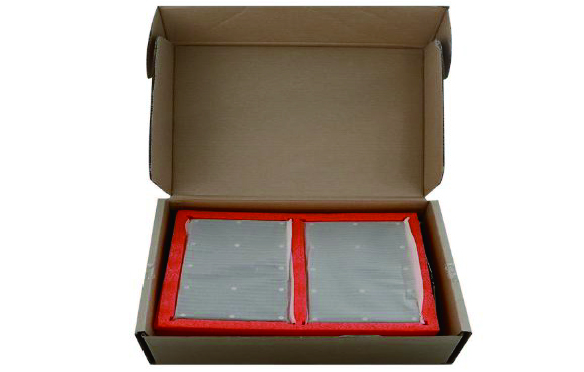

Module Package

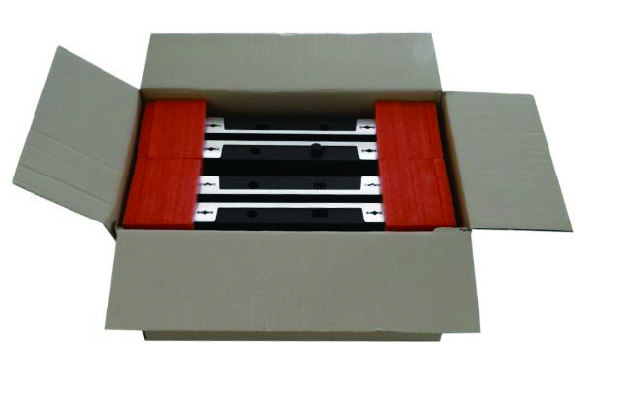

Cabinet Package

Flip chip IMD (high contrast) parameters

Item Flip chip IMD (mm)	P0.9375
cabinet resolution (dots)	640 x 360
Pixel Density (dots/㎡)	1,137,778
Cabinet size	600 x 337.5 (mm)
Brightness(nits)	1200
Cabinet material	Die-casting aluminum
Viewing angle	170° / 170°
Color Uniformity	Within ±0.0035 Cx, Cy
contrast Ratio	20000 : 1
Max. Power Consumption	550 w/㎡
Ave. Power Consumption	153 w/㎡
Working Voltage	Ac 100~240 (50~60HZ)
Drive Mode	Constant current drive
Frame Rate(HZ)	50 ~ 60HZ
Refresh Rate(HZ)	3840 ~ 7680
Gray Scale (bit)	16
Operation Temp (℃)	-10 ~ +40
Operation Humidity(RH)	10% ~ 80%, no condensation
Lifetime(H)	≥100，000
Maintenance Mode	Front maintenance
IP Grade	IP54
Certification Type	CCC, ETL, TUV-CE, FCC
