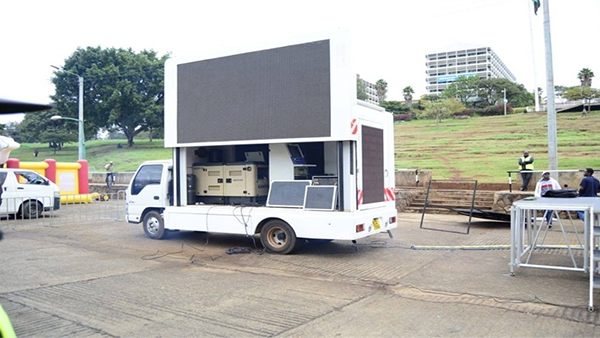

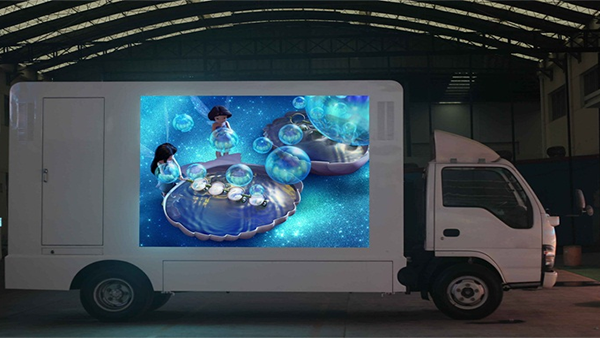

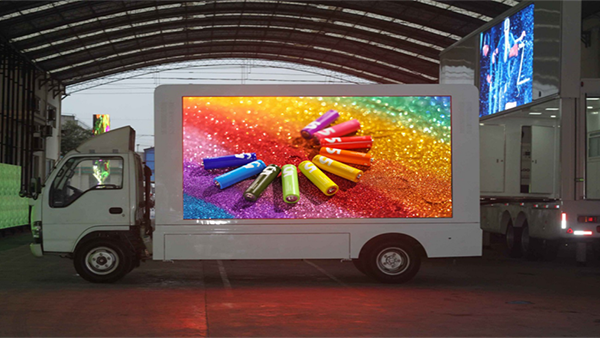

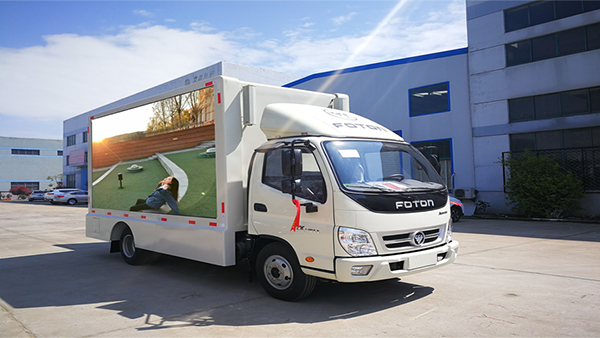

The truck LED screens to support 4G and WI-Fi, enabling us to upload content to the display remotely from home or office. This system ensure that we can effectively control the real-time display content.

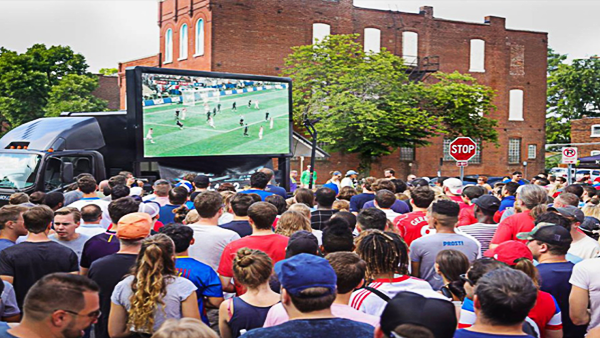

Mobile LED video wall are the brilliant way to communicate with viewers at any large scale events.
Whethere you are planning a corporate event, a sports event, a product launch or a party, truck LED screen will ensure that your message gets carried across to audiences and result in the success of functions. It’s easy to transport and install. Everything is inbuilt.
High-quality SMD LED with stable driving IC.
High-refresh rate of 3,840HZ,
Highi-quality lifting system of the screen frame.
The stable truck LED panel keeps the images and videos blur-free even when the vehicle is moving.

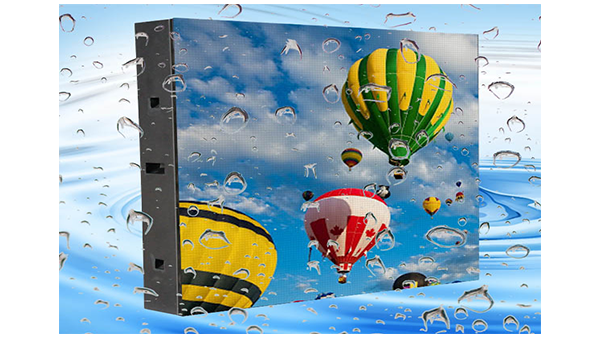

Our truck LED display adopts the automatic glue filling machine process, so it will effectively protect it from water and dust. Once it is install in ooutdoor areas, protection is a serious matter. The wires are durable. The modules use unique buckles for good shock resistance. High IP Rating(IP65) ensures great outputs in every condition.
With the air conditioner and big space inside, the technicians will feel much more comfortable than the similar products in the market when they operate the screen.
The pixel pitch of the truck LED screen are P4, P5, P6, P8, P10. We offer complete solutions with trucks and screens included. We’ll turn it into a fully functional truck LED wall.
Because of the convenience of operation and high-definition of this LED screen, it can be used in:
Promotion of activites like musical festivals
Product advertisements
Real estate development.
| Item | nbsp; | P4 | P5 |
|---|---|---|---|
| Pixel Pitch | nbsp; | 4mm | 5mm |
| Led Type | nbsp; | SMD1921 | SMD2727 |
| Module Resolution | nbsp; | 64dots x 32dots | 64dots x 32dots |
| Driving Mode | nbsp; | 1/8 Scan | 1/8 Scan |
| Module Pixels | nbsp; | 2,048dots | 2,048dots |
| Module Size | nbsp; | 256mm x 128mm | 320mm x 160mm |
| Cabinet Size | nbsp; | 1,024mm x 1,024mm | 960mm x 960mm |
| Screen Size | nbsp; | 4,096mm x 2,048mm(optional) | 3,840mm x 1,920mm(optional) |
| Screen Resolution | nbsp; | 960dots x 512dots | 768dots x 384dots |
| Pixel Density | nbsp; | 62,500 dots/sqm | 40,000 dots/sqm |
| Minimum Viewing Distance | nbsp; | ≥4m | ≥5m |
| Brightness | nbsp; | 6,000nits ~ 7,000nits | 6,000nits ~ 6,500nits |
| IP Grade | nbsp; | IP65 | IP65 |
| Refresh Rate | nbsp; | 1,920HZ ~ 3,840HZ | 1,920HZ ~ 3,840HZ |
| Gray Scale | nbsp; | 13bits ~ 24bits | 13bits ~ 24bits |
| Viewing Angle | nbsp; | H:160°/ V:160° | H:160°/ V:160° |
| Maxmum Power Consumption | nbsp; | 800W/sqm | 800W/sqm |
| Average Power Consumption | nbsp; | 230W/sqm | 230W/sqm |
| Input Voltage | nbsp; | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ |
| Operating Temperature | nbsp; | -20℃ ~ 65℃ | -20℃ ~ 65℃ |
| Operating Humidity | nbsp; | 10% ~ 90% | 10% ~ 90% |
| Cabinet Material | nbsp; | Iron | Iron |
| Cabinet Weight | nbsp; | 60kg/sqm | 60kg/sqm |
| Operating System | nbsp; | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) |
| Signal Source Compatibility | nbsp; | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc |
| Truck External Dimension | nbsp; | 5,995 x 2,190mm x 3,300mm | 5,995 x 2,190mm x 3,300mm |
| Truck Gross Weight | nbsp; | About 4,500kg | About 4,500kg |
| Maximum Speed | nbsp; | 80km/hr | 80km/hr |
| Chassis Brand | nbsp; | Foton | Fonton |
| Wheel Base | nbsp; | 3,360mm | 3,360mm |
| Engine Displacement | nbsp; | 2,780ml / 87kw | 2,780ml / 87kw |
| Driver Seat | nbsp; | Left(right optional) | Left(right optional) |
| Emission Standard | nbsp; | Euro III or Euro IV | Euro III or Euro IV |
| Frame Lifting System | nbsp; | Hydraulic System | Hydraulic System |
| Lifting Height | nbsp; | 1,600mm | 1,600mm |
| Load-bearing of Lifting System | nbsp; | 3,000kg | 3,000kg |
| Oil Type of Generator | nbsp; | Diesel | Diesel |
| Power of Generator | nbsp; | 8KW | 8KW |
