Energy-saving fixed outdoor display

Energy Saving LED Display

AFS960 Series is AlidenLED latest Common Cathode Aluminum Display with size of 960*960mm,
high IP68 waterproof level. Unique panel design with 480*320mm size.
Ultra low heat and power consumption, saving and excellent visual experience

energy saving display, outdoor led rental display

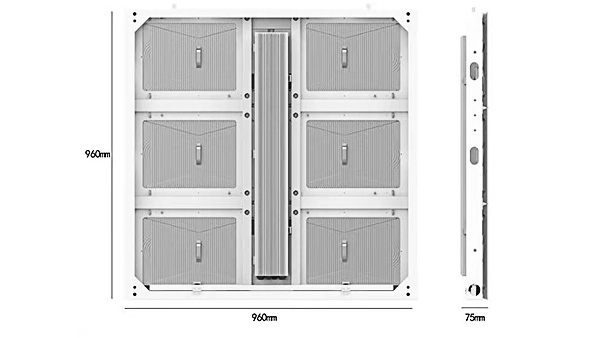

480*320mm Panel Design

Unique panel design with 480*320mm and 960*960mm cabinet size, Ultra thin thckness with 75mm design
Weight: 28KG/㎡ for Aluminum frame, 35KG/㎡ for mental frame
More size 960*1280/960*960/960*640/1440*1280/ 1440*960mm is Available

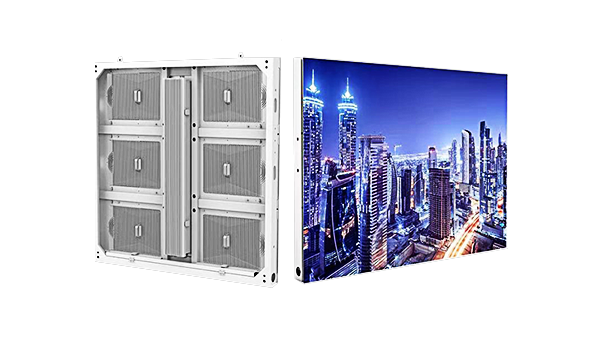

Aluminum Chassis Panel

AFS960 energy saving LED display adopts Aluminum Chassis design for panel.
Aluminum chasis adopt edge lock without screwing design. full sealed design, to protect its internal components.

energy saving display, outdoor led rental display

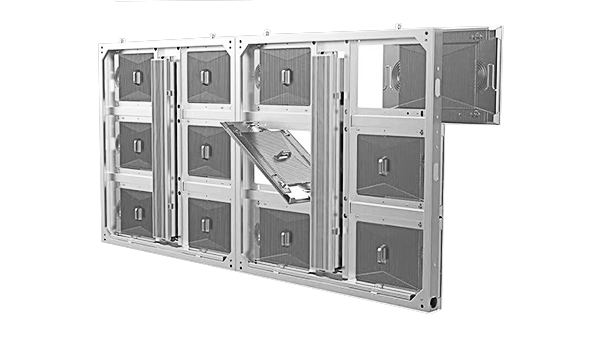

High Protective Performance

Aluminum material, high temperature durability, fast heat-dissipation.The whole product can Reach 5VB fireproofing level.
Full sealed die-casting aluminum module chassis. Water proof connectors(between modules), Drain hole is designed at the bottom of the panel to prevent ponding.

Safety Harness Design

Each LED module is equipped with a safety harness to prevent the module from falling and hitting people.

energy saving display, outdoor led rental display

Recycling, Environment and Economy

Die-casting aluminum chassis, recycle rate 90% for the whole product. Long lifetime, 30% Redundance while use 7000nits.
Using 10000nits,3000nits can sustain 7000nits using for 5 years, Good heat dissipation performance

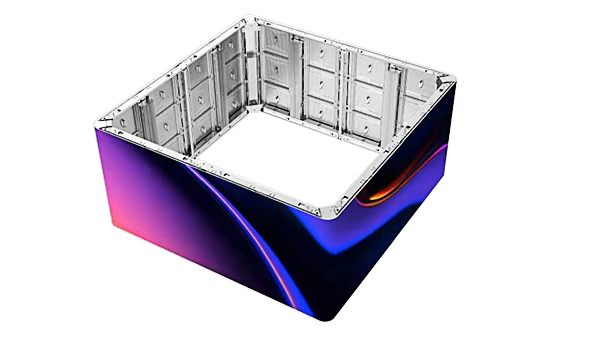

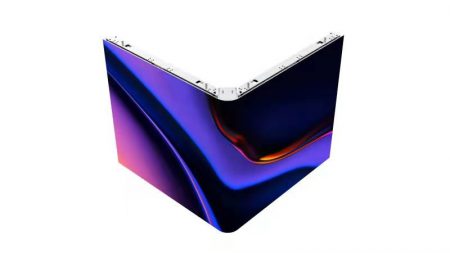

Flexible & various

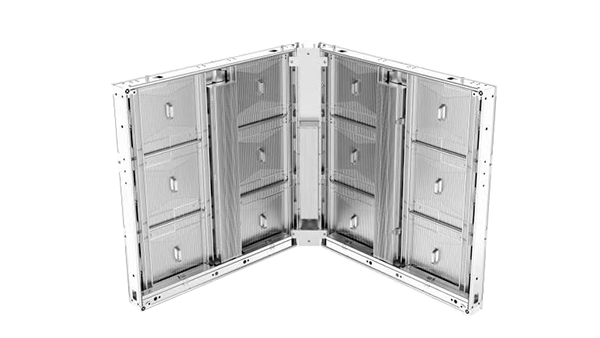

90° ~ 135° customizable corner LED seamless & smoother assembling seamlessly assemble presenting a smmoth and vivid visual effect.

energy saving display, outdoor led rental display

Model Name	P6.67	P8	P10
Pixel Pitch(mm)	6.667	8	10
Pixel density(dot/sqm)	22,500	15,625	10,000
LED sealing type	SMD2727	SMD3535	SMD3535
Module size(mm x mm)	480 x 320	480 x 320	480 x 320
Modue resolution (PX x PX)	72 x 48	60 x 40	48 x 32
Brightness(cd/sqm)	6,500 ~ 10,000	6,500 ~ 10,000	6,500 ~ 10,000
Grey scale(bit)	≥14	≥14	≥14
Refresh rate(HZ)	3,840	3,840	3,840
Max cabinet power consumption(w)	550	550	550
Ave cabinet power consumption(w)	180	180	180
Cabinet size(mm x mm)	960 x 960	960 x 960	960 x 960
Cabinet weight(kg)	28kg	28kg	28kg
Viewing angle(H° \| V°)	160° \| 140°	160° \| 140°	160° \| 140°
Input voltage(V)	110 ~ 220V \| 220V ~ 240V	110 ~ 220V \| 220V ~ 240V	110 ~ 220V \| 220V ~ 240V
Working temperature(°C)	-20 ~ +40°C	-20 ~ +40°C	-20 ~ +40°C
Working humidity(RH)	10% ~ 90%	10% ~ 90%	10% ~ 90%
Waterproof level	IP67	IP67	IP67
Working life	50,000H	50,000H	50,000H
Working environment	Outdoor	Outdoor	Outdoor
Install method	Fixed Installation	Fixed Installation	Fixed Installation
