OA3 Outdoor Led Display

Die-Casting Magnalium Cabinet

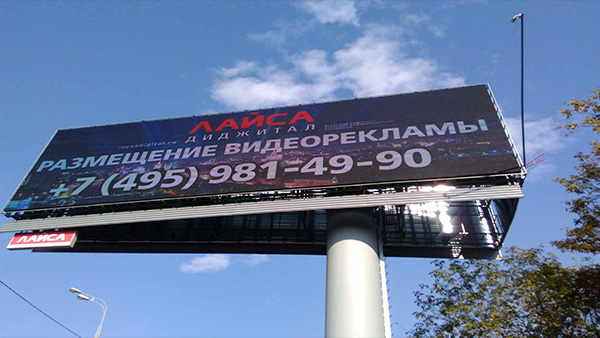

The OA3 LED display has become popular in the field of outdoor advertising. To make this product stable and reliable, we have carefully selected high-quality materials and built the cabinet with die-casting magnalium. Out of consideration for clients’ requests and different application scenes, the shape and size of our OA3 are slim and concise.

It aims at slim type outdoor advertising and outdoor digtial signage. The pixel pitches are P4, P5, P6.6, P8, P10, and P16.

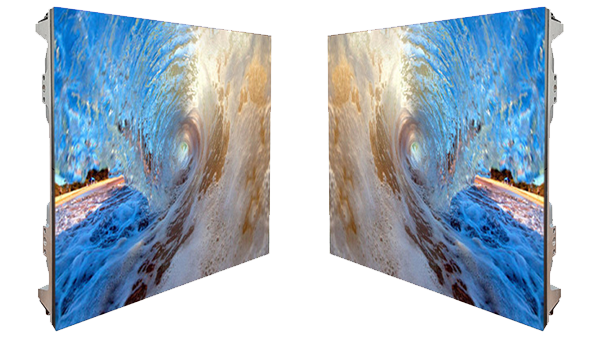

Slim Design, Light Weight and Front Access Design.

The concise cabinet and light weight are designed to reduce the pressure of construction and transportation.

The cabinet is die-casting magnalium. The OA3 LED screen only weighs 29.5kgs per cabinet. Meanwhile, the die-casting cabinet looks neat and elegant.

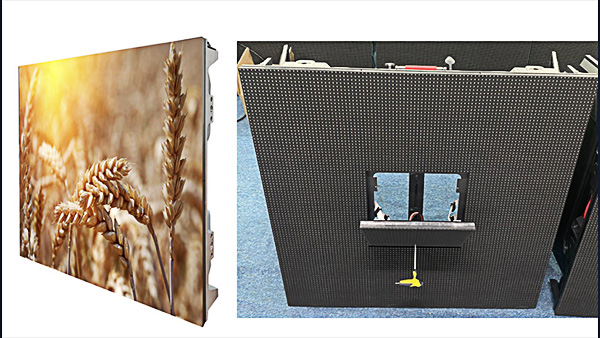

With front access design, all components, such as power box, receiving card and other accessories, can be removed from the front. You don’t need to leave any space in the back of the LED cabinet.

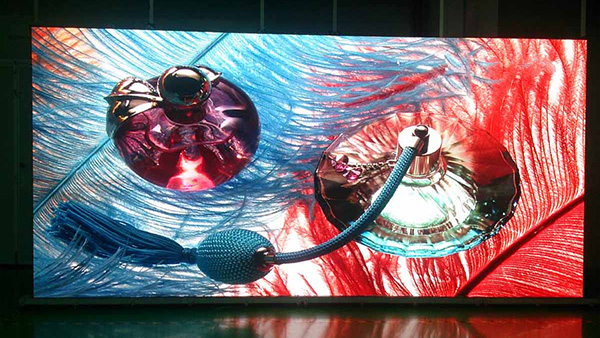

outdoor led display manufacture

Fanless Design, Better Heat Dissipation

The OA3 LED video wall is capable of dissipating heat without fans or air conditioners. This design will also reduce weight and save energy. Meanwhile, the die-casting magnalium shell will segregate heat from outside and protect the inner modules. Thus, the screen will function more stable.

There are no fans on the cabinet. That means the outside dust and humidity will not be sucked into the cabinet because of the running fans, which increases the waterproof and dustproof grades. Meanwhile, the heat sink strips are on the cabinet door, which helps to dissipate the heat faster.

Low Power Consumption

We use customized PCB and power supply, so the average power consumption is less than 150W/㎡. Compared with similar products in the market, our OA3 LED sign board saves 20% energy.

led display supplier

Superior Visual Effects

Our outdoor digital signage has high brightness(5,000 ~ 10,000 nits), ultimate refresh rate (1,920Hz-3,840Hz), and high gray scale (13bits-24bits). Wide horizontal and large viewing angles of our LED signage is up to 160°.

Stable Performance

Thanks to the adoption of high-quality standard material for the screens, such as superb power supply, driving IC, and LED, the screen is able to work properly for more than 8 years.

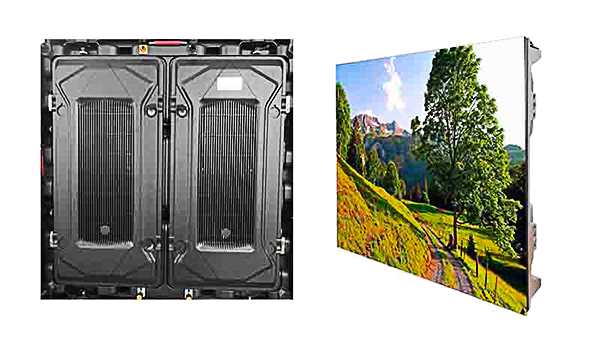

led display outdoor, led screen supplier

led outdoor signature

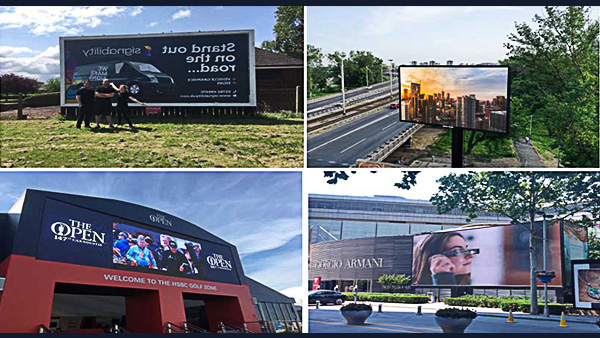

Application Fields

In order to fit each different scene, our outdoor advertising LED display is made up of superior quality materials with the concise and strong cabinet. This product is usually used in:

Stages
Sports Events
Shopping Center

Item	nbsp;	P4	P6	P6.6	P8	P10(SMD)	P10(DIP)	P16
Pixel Pitch	nbsp;	4mm	5mm	6.667mm	8mm	10mm	10mm	16mm
Led Type	nbsp;	SMD1921	SMD1921	SMD2727	SMD2727	SMD2727	DIP346	DIP346
Module Resolution	nbsp;	80dots x 40dots	64dots x 32dots	48dots x 48dots	40dots x 40dots	32dots x 32dots	32dots x 16dots	16dots x 16dots
Driving Mode	nbsp;	1/10 Scan	1/8 Scan	1/6 Scan	1/5 Scan	1/2 Scan	1/4 Scan	Static
Module Pixels	nbsp;	3,200 dots	2,048 dots	2,304 dots	1,600 dots	1,024 dots	512 dots	256 dots
Module Size	nbsp;	320mm x 160mm	320mm x 160mm	320mm x 320mm	320mm x 320mm	320mm x 320mm	320mm x 160mm	256mm x 256mm
Cabinet Size	nbsp;	960mm x 960mm x 110mm	960mm x 960mm x 110mm	960mm x 960mm x 110mm	960mm x 960mm x 110mm	960mm x 960mm x 110mm	960mm x 960mm x 110mm	1,024mm x 768mm x 110mm
Cabinet Resolution	nbsp;	240dots x 240dots	192dots x 192dots	144dots x 144dots	120dots x 120dots	96dots x 96dots	96dots x 96dots	64dots x 48dots
Pixel Density	nbsp;	62,500 dots/sqm	40,000 dots/sqm	22,500 dots/sqm	15,625 dots/sqm	10,000 dots/sqm	10,000 dots/sqm	3,906.25 dots/sqm
Minimum Viewing Distance	nbsp;	≥4 m	≥5 m	≥6 m	≥8 m	≥10 m	≥10 m	≥16 m
Brightness	nbsp;	6000 ~ 7,000nits	6000 ~ 7,000nits	5500 ~ 10,000nits	5500 ~ 10,000nits	5500 ~ 10,000nits	≥7000nits	7000 ~ 10,000nits
IP Grade	nbsp;	IP65	IP65	IP65	IP65	IP65	IP65	IP65
Refresh Rate	nbsp;	1920 ~ 3840HZ	1920 ~ 3840HZ	1920 ~ 3840HZ	1920 ~ 3840HZ	1920 ~ 3840HZ	1920 ~ 3840HZ	1920 ~ 3840HZ
Gray Scale	nbsp;	13bits ~ 24bits	13bits ~ 24bits	13bits ~ 24bits	13bits ~ 24bits	13bits ~ 24bits	13bits ~ 24bits	13bits ~ 24bits
Viewing Angle	nbsp;	H:160°/ V:160°	H:160°/ V:160°	H:160°/ V:160°	H:160°/ V:160°	H:160°/ V:160°	H:160°/ V:160°	H:160°/ V:160°
Maxmum Power Consumption	nbsp;	800W/sqm	800W/sqm	800W/sqm	800W/sqm	800W/sqm	800W/sqm	800W/sqm
Average Power Consumption	nbsp;	280W/sqm	280W/sqm	280W/sqm	230W/sqm	230W/sqm	230W/sqm	230W/sqm
Input Voltage	nbsp;	AC110V ~ AC220V @50/60HZ	AC110V ~ AC220V @50/60HZ	AC110V ~ AC220V @50/60HZ	AC110V ~ AC220V @50/60HZ	AC110V ~ AC220V @50/60HZ	AC110V ~ AC220V @50/60HZ	AC110V ~ AC220V @50/60HZ
Operating Temperature	nbsp;	-20℃ ~ 65℃	-20℃ ~ 65℃	-20℃ ~ 65℃	-20℃ ~ 65℃	-20℃ ~ 65℃	-20℃ ~ 65℃	-20℃ ~ 65℃
Operating Humidity	nbsp;	10% ~ 90%	10% ~ 90%	10% ~ 90%	10% ~ 90%	10% ~ 90%	10% ~ 90%	10% ~ 90%
Cabinet Material	nbsp;	Die-casting Magnesium	Die-casting Magnesium	Die-casting Magnesium	Die-casting Magnesium	Die-casting Magnesium	Die-casting Magnesium	Die-casting Magnesium
Cabinet Weight	nbsp;	29.5 Kg/Panel	29.5 Kg/Panel	29.5 Kg/Panel	29.5 Kg/Panel	29.5 Kg/Panel	29.5 Kg/Panel	29.5 Kg/Panel
Operating System	nbsp;	Windows(win7,Win8,Win10,etc)	Windows(win7,Win8,Win10,etc)	Windows(win7,Win8,Win10,etc)	Windows(win7,Win8,Win10,etc)	Windows(win7,Win8,Win10,etc)	Windows(win7,Win8,Win10,etc)	Windows(win7,Win8,Win10,etc)
Signal Source Compatibility	nbsp;	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc
