Outdoor Rental Display 02

Features preview

outdoor events. The pixel pitches are P3.9, P4.8, and P5.9.
Multiple ways ofprotection effectively protect the LED
module from damage.

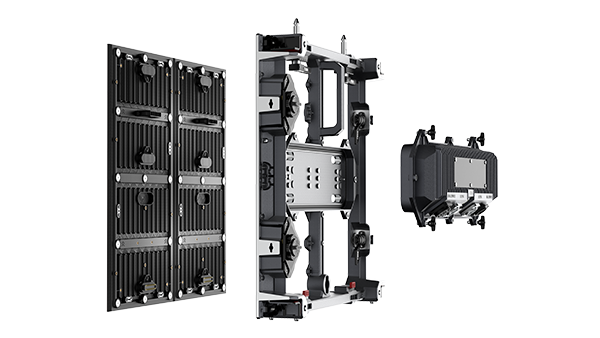

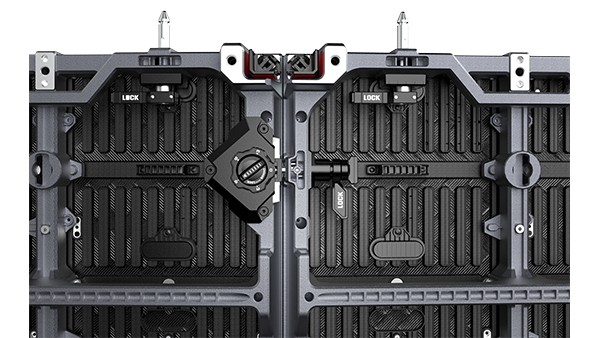

Fast locks for tighter assemble with no gap.
Anti-collision pin corners of the cabinet protect the
module and led lamps.
Die-casting Magnalium makes the cabinet waterproof for outdoor applications

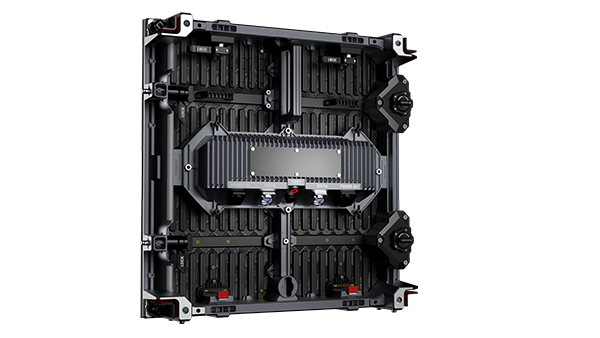

Strong Cabinet, High Quality PCb

The cabinet material is magnesium alloy, which is tronger than regular aluminum material. Meanwhile, the cabinet is lighter than the aluminum cabinet, so installation are easier, Moreover, we have utilized the high quality PCb in the LED modules. Therefore, the LED screen works more stably than similar outdoor rental products from other factories. There are two choices for the cabinet;

500 x 500mm
500 x 1,000mm

outdoor rental display

Outdoor Led Rental Display

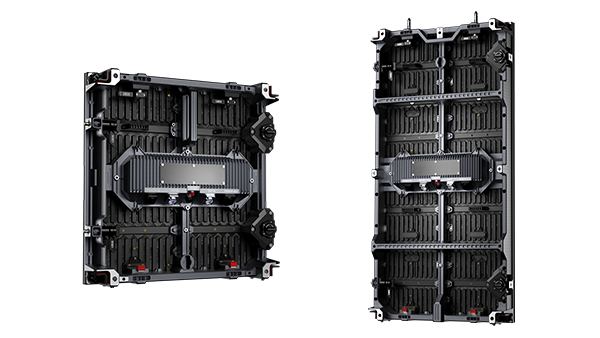

Flexible Installation

To meet the requirements of customers in different application scenarios, 2 cabinet sizes are available. The weight of the cabinet is 7.5kgs for 500mm x 500mm cabinet and 14.5kgs for 500mm x 1000mm cabinet, which makes installation flexible during the event.

More Angles, More Creativity

The LED screen can be any shape, for example, round shape, flat shape, which enables more possibilities of your stage design.

outdoor rental display, led display supplier

Outdoor led rental display, rental display supplier

High Brightness

The brightness of the outdoor display is 4,500nits ~ 6,000nits,
which enables the screen to have very good clarity in direct sunlight.
Meanwhile, the cabinet also has very good heat dissipation, so the performance of the LED video display is very reliable.

IP65 – Safe and Reliable

LED big screen adopts the automatic glue filling machine process, so it will effectively protect it from water and dust. High IP Rating(IP65) ensures great outputs in every condition.

Stunning Vision

Which high quality material and great design, the screen looks extraordinary. Meanwhile, black outdoor LED technology is optional, and the outdoor rental LED screen stands out with peerless visual performance.

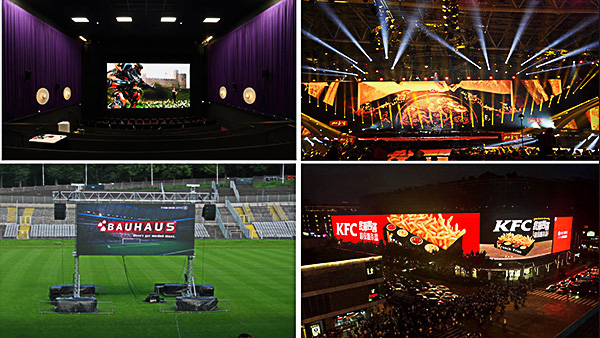

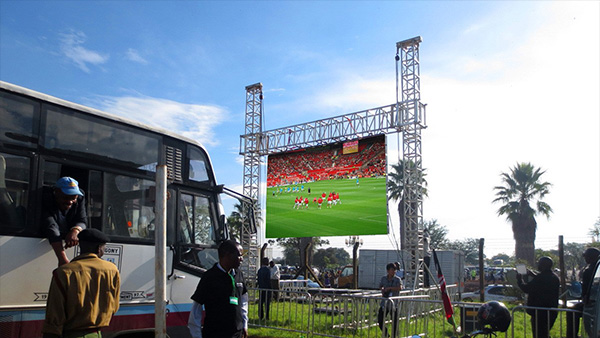

Application Fields

To fit every different scene, the outdoor full color LED display is made up of superior quality materials with the concise and strong cabinet. This product is usually used in :

Cinemas
Stages
Advertisenmens
Sports Events

Item	nbsp;	P3.9	P4.8	P5.9
Pixel Pitch	nbsp;	3.906mm	4.807mm	5.952mm
Led Type	nbsp;	SMD1921	SMD1921	SMD2727
Module Resolution	nbsp;	64dots x 64dots	52dots x 52dots	42dots x 42dots
Driving Mode	nbsp;	1/16 Scan	1/13 scan	1/7 scan
Module Pixels	nbsp;	4,096dots	2,704dots	1,764dots
Cabinet Size	nbsp;	500mm x 500mm or 500mm x 1,000mm	500mm x 500mm or 500mm x 1,000mm	500mm x 500mm or 500mm x 1,000mm
Cabinet Resolution	nbsp;	128dots x 128dots or 128dots x 256dots	104dots x 104dots or 104dots x 208dots	84dots x 84dots or 84dots x 168dots
Pixel Density	nbsp;	65,536dots/sqm	43,264dots/sqm	28,224dots/sqm
Minimum Viewing Distance	nbsp;	≥3.9m	≥4.8m	≥5.9m
Brightness	nbsp;	≥4,500nits	≥4,500nits	≥4,500nits
IP Grade	nbsp;	IP65	IP65	IP65
Refresh Rate	nbsp;	1,920HZ ~ 3,840HZ	1,920HZ ~ 3,840HZ	1,920HZ ~ 3,840HZ
Gray Scale	nbsp;	13bits ~ 24bits	13bits ~ 24bits	13bits ~ 24bits
Viewing Angle	nbsp;	H:160°/V:160°	H:160°/V:160°	H:160°/V:160°
Maxmum Power Consumption	nbsp;	800W/sqm	800W/sqm	800W/sqm
Average Power Consumption	nbsp;	230W/sqm	230W/sqm	230W/sqm
Input Voltage	nbsp;	AC110V ~ AC220V @50/60HZ	AC110V ~ AC220V @50/60HZ	AC110V ~ AC220V @50/60HZ
Operating Temperature	nbsp;	-20℃ ~ 65℃	-20℃ ~ 65℃	-20℃ ~ 65℃
Operating Humidity	nbsp;	10% ~ 90%	10% ~ 90%	10% ~ 90%
Cabinet Material	nbsp;	Die-Casting magnalium	Die-Casting magnalium	Die-Casting magnalium
Cabinet Weight	nbsp;	7.5kg/panel or 12.5kg/panel	7.5kg/panel or 12.5kg/panel	7.5kg/panel or 12.5kg/panel
Operating System	nbsp;	Windows(win7,Win8,Win10,etc)	Windows(win7,Win8,Win10,etc)	Windows(win7,Win8,Win10,etc)
Signal Source Compatibility	nbsp;	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc
