In addition, we have a variety of customized products to satisfy different requests.
Furthermore, it is worth pointing out what makes creative LED screen special is its wide viewing angle of 360°.

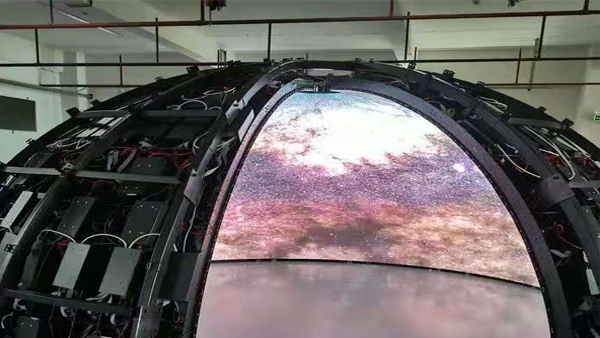

The module and PCB board are made by high precision CNC machine. Our module adopts the circuit design which serves to dissipate heat. And especially thanks to the great design of PCB board, its heat dissipation will be better than that of other products. Therefore, LED Sphere Display can be fully used to replace traditional advertising media tools, for example, TV sets.

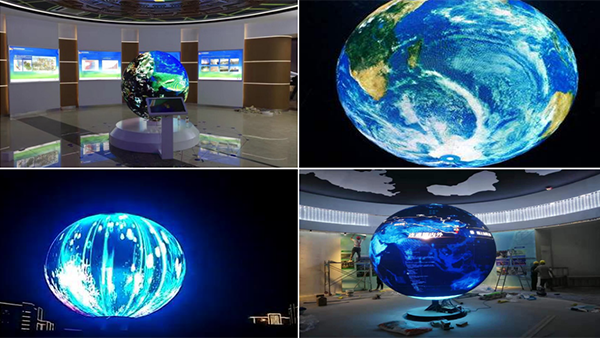

The display supports front access maintenance, effectively reducing down-time. As a complete system, Sphere LED display supports landing installation, lifting installation, embedded installation and so on.

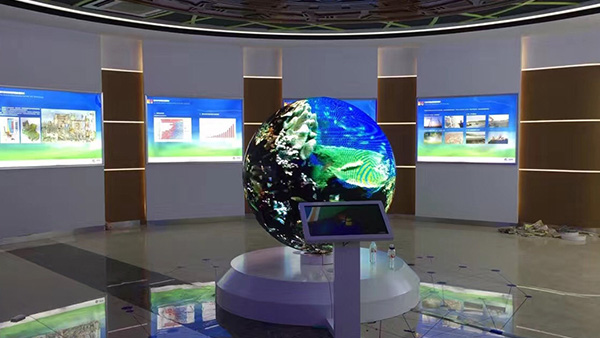

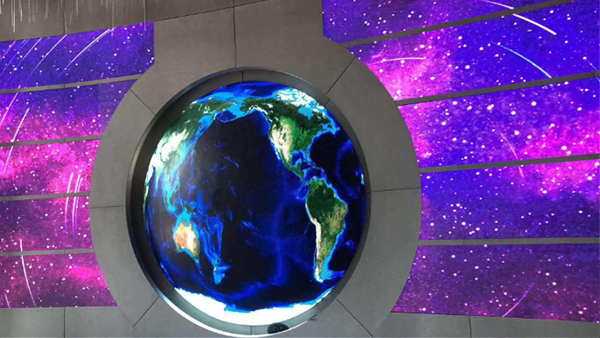

Applications: planetarium, exhibition, museum, airport, railway station, shopping mall, bar, etc.

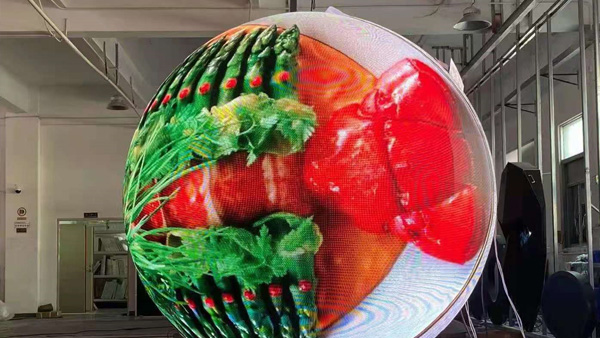

Spherical LED screen can play all-around videos and pictures. It always shows amazing video and picture display effects to our customers. Special PCB design can ensure less distortion of showing picture.
Item | P2.5 | P3 | P4 | P6 | P8 | P10 | |
---|---|---|---|---|---|---|---|
Pixel Pitch | nbsp; | 2.5mm | 3mm | 4mm | 6mm | 8mm | 10mm |
Led Type | SMD1515 | SMD2020 | SMD2020 | SMD2727 | SMD3535 | SMD3535 | |
Module Resolution | customized | customized | customized | customized | customized | customized | |
Driving Mode | 1/24 Scan | 1/22 Scan | 1/16 Scan | 1/8 Scan | 1/4 Scan | 1/2 Scan | |
Minimum Viewing Distance | ≥2.5 m | ≥3 m | ≥4 m | ≥6 m | ≥8 m | ≥10 m | |
Brightness | 800nits ~ 1,200nits | 800nits ~ 1,200nits | 800nits ~ 1,200nits | 6,000nits ~ 10,000nits | 5,500nits ~ 7,000nits | 6,000nits ~ 10,000nits | |
IP Grade | IP43 | IP43 | IP43 | IP65 | IP65 | IP65 | |
Refresh Rate | 1,920HZ ~ 3,840HZ | 1,920HZ ~ 3,840HZ | 1,920HZ ~ 3,840HZ | 1,920HZ ~ 3,840HZ | 1,920HZ ~ 3,840HZ | 1,920HZ ~ 3,840HZ | |
Gray Scale | 13bits ~ 24bits | 13bits ~ 24bits | 13bits ~ 24bits | 13bits ~ 24bits | 13bits ~ 24bits | 13bits ~ 24bits | |
Viewing Angle | H:160°/ V:160° | H:160°/ V:160° | H:160°/ V:160° | H:160°/ V:160° | H:160°/ V:160° | H:160°/ V:160° | |
Maxmum Power Consumption | 800W/sqm | 800W/sqm | 800W/sqm | 800W/sqm | 800W/sqm | 800W/sqm | |
Average Power Consumption | 230W/sqm | 230W/sqm | 230W/sqm | 230W/sqm | 230W/sqm | 230W/sqm | |
Input Voltage | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ | |
Operating Temperature | -20℃ ~ 65℃ | -20℃ ~ 65℃ | -20℃ ~ 65℃ | -20℃ ~ 65℃ | -20℃ ~ 65℃ | -20℃ ~ 65℃ | |
Operating Humidity | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | |
Cabinet Material | Iron | Iron | Iron | Iron | Iron | Iron | |
Cabinet Weight | 35kg/sqm | 35kg/sqm | 35kg/sqm | 50kg/sqm | 50kg/sqm | 50kg/sqm | |
Operating System | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) | |
Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc |
Welcome to contact us.
