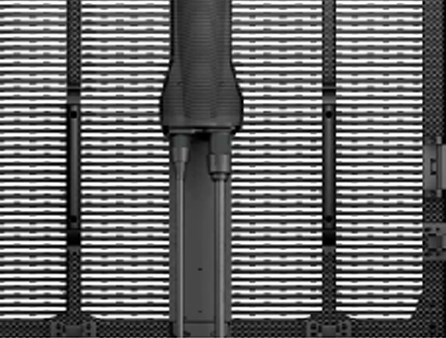

High Brightness Lamp And Transparent Module
Magic Lock System, easiest setup experience
Item | nbsp; | CTR 5.68 | CTR 6.9 | CTR 7.8 | CTR 10.4 |
---|---|---|---|---|---|
Pixel Pitch | nbsp; | 5.68 mm | 6.9 mm | 7.81 mm | 10.4 mm |
Led Type | nbsp; | SMD1921 | SMD1921 | SMD1921 | SMD3535 |
Module size | nbsp; | 500mm x 250 mm | 250mm x 125 mm | 250mm x 125 mm | 250mm x 125 mm |
Module Resolution | nbsp; | 88 x 44 | 36 x 18 | 32 x 16 | 24 x 12 |
Cabinet Size | nbsp; | 500 mm x 1000 mm x 19 mm | 500 mm x 1000 mm x 65 mm | 500 mm x 1000 mm x 65 mm | 500 mm x 1000 mm x 65 mm |
Cabinet resolution | nbsp; | 88 x 176 | 72 x 144 | 64 x 128 | 48 x 96 |
Pixel Density | nbsp; | 30976 | 20736 | 16384 | 9216 |
Brightness | nbsp; | 5000 – 6000 | 4500 | 4500 | 5000 |
Max. Power Consumption | nbsp; | 700 | 800 | 800 | 800 |
Ave. Power Consumption | nbsp; | 233 | 240 | 240 | 240 |
Transparent | nbsp; | 30 % | 35 % | 40 % | 45 % |
Weight | nbsp; | 9 kg/sqm | 14 kg/sqm | 14 kg/sqm | 14 kg/sqm |
Horizontal Viewing Angle | nbsp; | 140 ° | 140 ° | 140 ° | 140 ° |
Vertical Viewing Angle | nbsp; | 120 ° | 120 ° | 120 ° | 120 ° |
Gray Scale | nbsp; | 14 Bit | 14 Bit | 14 Bit | 14 Bit |
Refresh Rate (HZ) | nbsp; | 3840 | 3840 | 3840 | 3840 |
Frame Frequency (HZ) | nbsp; | 50 / 60 HZ | 50 / 60 HZ | 50 / 60 HZ | 50 / 60 HZ |
Color Temperature | nbsp; | 6500 K | 6500 K | 6500 K | 6500 K |
Input Voltage | nbsp; | 100 – 240 VAC, 50 – 60 HZ | 100 – 240 VAC, 50 – 60 HZ | 100 – 240 VAC, 50 – 60 HZ | 100 – 240 VAC, 50 – 60 HZ |
Operating Temperature | nbsp; | -20 to 50 ° | -20 to 50 ° | -20 to 50 ° | -20 to 50 ° |
Storage Temperature | nbsp; | -40 – 80 ° | -40 – 80 ° | -40 – 80 ° | -40 – 80 ° |
Operating Humidity | nbsp; | 10% To 80% | 10% To 80% | 10% To 80% | 10% To 80% |
Life Span Of Lamp (hours) | nbsp; | 100, 000 | 100, 000 | 100, 000 | 100, 000 |

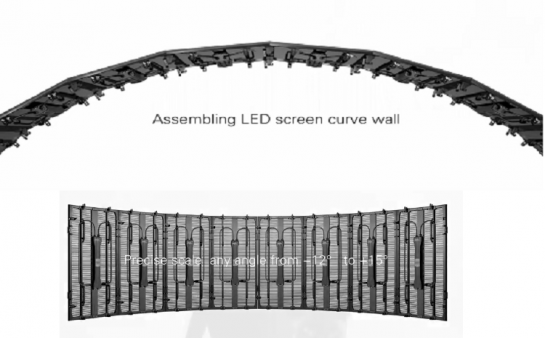

Angle Of Curve | nbsp; | -12° – +15° | -12° – +15° | -12° – +15° | -12° – +15° |
Level Of Protection | nbsp; | IP65 | IP65 | IP65 | IP65 |
