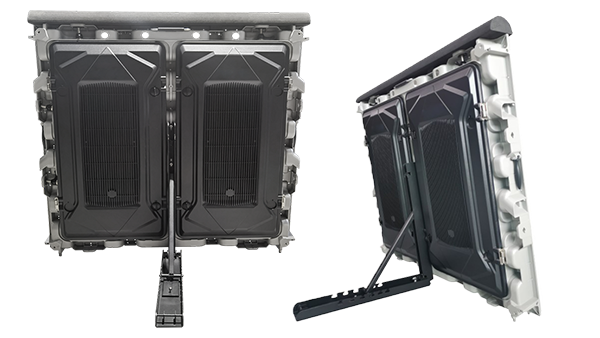

The main difference between perimeter led screen and the other series is perimeter led screen has soft plastic screen in the stadium by accident. It has a back supporting stand for adjusting the screen to different viewing angle.
Since we use high-quality SMD LED and excellent PCB design, the perimeter led screen can bring you the HD picture performance indoors or outdoors. The pixel pitches are P6.6, P8 and P10.
The high Brightness of Stadium led screen can be up to 10,000 nits, even under the scorching sun, the audience can clearly see the match score and the sponsorship advertisenment. It’s 160 degrees wide viewing angle and up to 24bits grey scale of this screen can bring an excellent visiual experience to the audience present.
Stadium led screen adopts high quality conformal coating, so the component is effectively moisture-proof and dust-proof. Therefore, the screen can be used in severe indoor and outdoor environment.
Multifunction For Sports Events

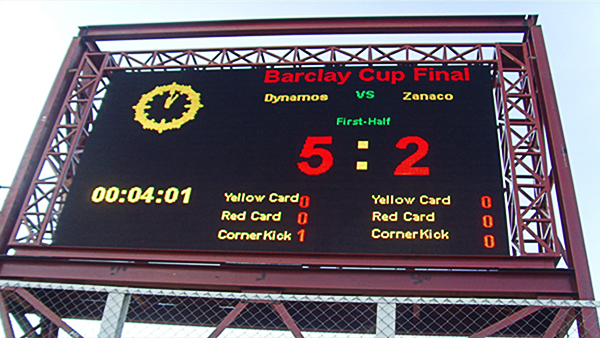

Perimeter led screen can be also used as a scoreboard in the stadium. You can clearly see what is on the screen at various angles.
The high-precision magnesium aluminum alloy cabinet is adopted. Compared with the traditional one, permeter led screen’s cabinet joint is quicker, and it has better splicing effect.

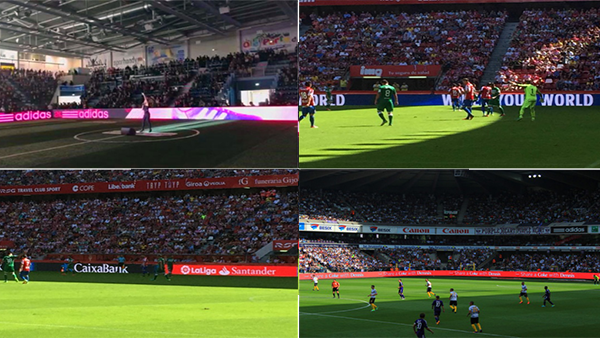

Our perimeter LED screen meets the UEFA standard, and we have sold many perimeter screens to different European stadiums.
The Viewing angle of our sports LED display can be up to 160°
Normally the wide of the perimeter display is very long and the horizontal resolution is way over the limit of the monitor 3840dots, so the screen will be displayled in several separate windows. We have solution to make the screen display a complete image even if the pixels more than 30k or even more.

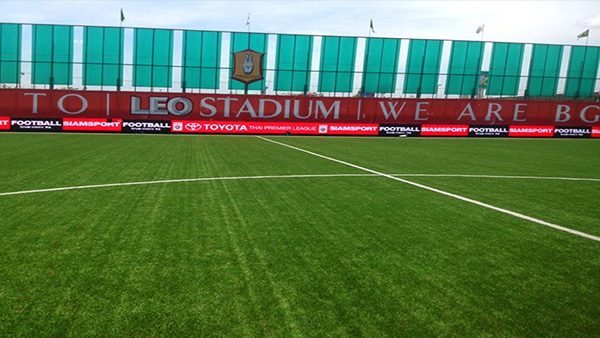

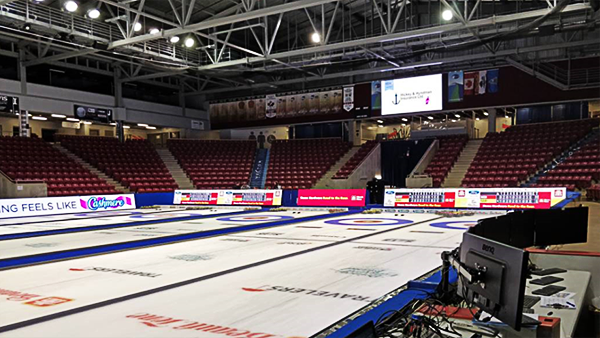

On the basis of its superior performance, unique design, the perimeter led screen can be used indoors and outdoors. It is always used in the stadium as:

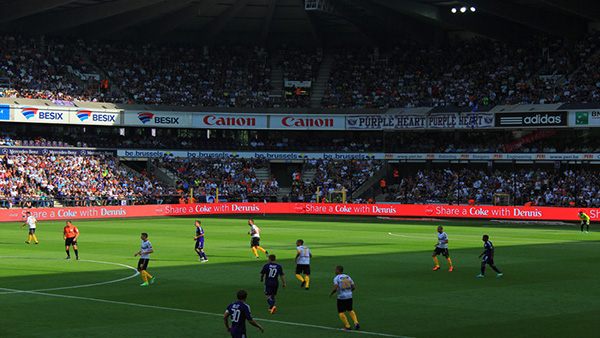

Perimeter Banner Screen
Score Board
Live Feed Video Screen.
| Item | nbsp; | P6.6 | P8 |
|---|---|---|---|
| Pixel Pitch | nbsp; | 6.67mm | 8mm |
| Led Type | nbsp; | SMD2727 | SMD3535 |
| Module Resolution | nbsp; | 32dots x 32dots | 32dots x 16dots / 40dots x 20dots |
| Driving Mode | nbsp; | 1/6 Scan | 1/4 scan | 1/5 scan |
| Module Pixels | nbsp; | 1,024dots | 512dots | 800dots |
| Module Size | nbsp; | 192mm x 192mm | 256mm x 128mm | 320mm x 160mm |
| Cabinet Size | nbsp; | 1,152mm x 768mm | 1,024mm x 768mm | 960mm x 960mm |
| Cabinet Resolution | nbsp; | 192dots x 128dots | 128dots x 96dots or 120dots x 120dots |
| Pixel Density | nbsp; | 27,777.777dots/sqm | 15,625dots/sqm |
| Minimum Viewing Distance | nbsp; | ≥6m | ≥8m |
| Brightness | nbsp; | 6,000nits ~ 10,000nits | 5,500nits ~ 7,000nits |
| IP Grade | nbsp; | IP65 | IP65 |
| Refresh Rate | nbsp; | 1,920HZ ~ 3,840HZ | 1,920HZ ~ 3,840HZ |
| Gray Scale | nbsp; | 13bits ~ 24bits | 13bits ~ 24bits |
| Viewing Angle | nbsp; | H:160°/V:160° | H:160°/V:160° |
| Maxmum Power Consumption | nbsp; | 800W/sqm | 800W/sqm |
| Average Power Consumption | nbsp; | 230W/sqm | 230W/sqm |
| Input Voltage | nbsp; | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ |
| Operating Temperature | nbsp; | -20℃ ~ 65℃ | -20℃ ~ 65℃ |
| Operating Humidity | nbsp; | 10% ~ 90% | 10% ~ 90% |
| Cabinet Material | nbsp; | Magnalium aluminum alloy | Magnalium aluminum alloy |
| Cabinet Weight | nbsp; | 42kg/panel | 42kg/panel |
| Operating System | nbsp; | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) |
| Signal Source Compatibility | nbsp; | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc |
Welcome to contact us.
